PLC Control Automatic Coil Winding Machine Making Coil

Automatic Coil Winding Machine PLC Control Transformer Winding Machine Making Coil

Description of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is an electrical equipment manufacturing machinery for making transformer coils and other similar products. The automatic coil winding machine can be used to wind copper wire and aluminium wire. The maximum height of coil the automatic coil winding machine can wind is 800mm. One servo motor is adopted to drive the wire guide, which guarantees the wire guide to move precisely. With PLC based control system and HMI, the automatic coil winding machine can be operated easily.

Features of automatic coil winding machine ZPX800

easy operation, slow starting, smooth running, full function, high automation, etc.

Main parameters of automatic coil winding machine ZPX800

The typical standard specifications of automatic coil winding machine ZPX800 is as following, however, the coil winding machine can also be manufactured as requested.

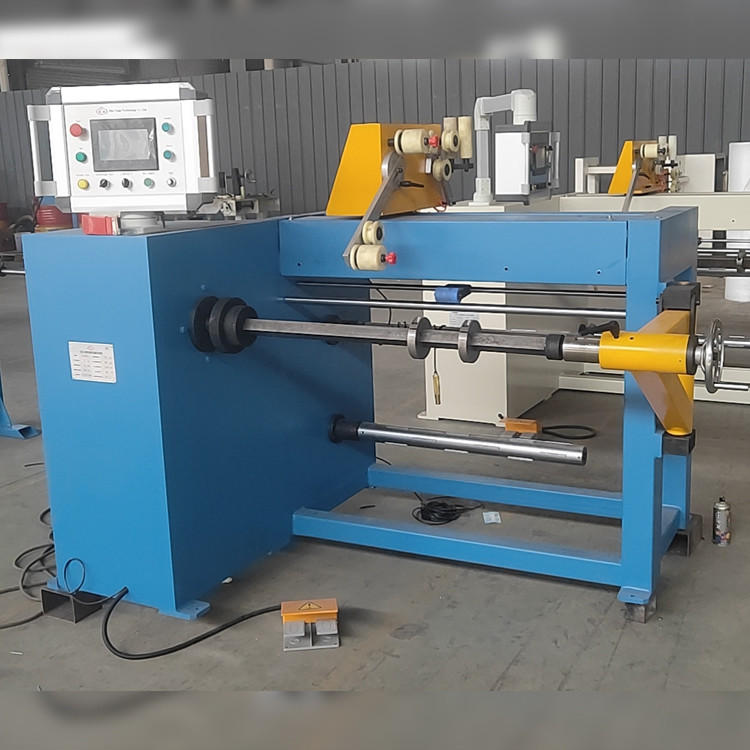

Fig 1: Automatic coil winding machine ZPX800's front view

Fig 2: Automatic coil winding machine ZPX800's wire guide
