PLC Control Automatic Coil Winding Machine Making Coil

PLC Control Automatic Coil Winding Machine Making Coil

PLC Control Automatic Coil Winding Machine Making Coil
PLC Control Automatic Coil Winding Machine Making Coil

Large Image :  PLC Control Automatic Coil Winding Machine Making Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Motor Power: 4kw
Servo Motor Power: 0.75kw Winding Speed: 0 ~ 160rpm
Wire Material: Cu Or Al Wire Conductor Type: Flat Or Round Wire
Counter: 5-digital Wire Guide: 1 Pc
High Light:

Automatic Coil Winding Machine PLC Control

,

PLC Control Transformer Winding Machine

,

160rpm Transformer Winder Machine

Automatic Coil Winding Machine PLC Control Transformer Winding Machine Making Coil





Description of automatic coil winding machine ZPX800



Automatic coil winding machine ZPX800 is an electrical equipment manufacturing machinery for making transformer coils and other similar products. The automatic coil winding machine can be used to wind copper wire and aluminium wire. The maximum height of coil the automatic coil winding machine can wind is 800mm. One servo motor is adopted to drive the wire guide, which guarantees the wire guide to move precisely. With PLC based control system and HMI, the automatic coil winding machine can be operated easily.





Features of automatic coil winding machine ZPX800



easy operation, slow starting, smooth running, full function, high automation, etc.





Main parameters of automatic coil winding machine ZPX800



The typical standard specifications of automatic coil winding machine ZPX800 is as following, however, the coil winding machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 40x40x1100mm
Maximum Winding Width: 800mm
Winding Motor: 4kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3mm ~ Ø5.0mm
Maximum Wound Coil OD.: 800mm
Maximum Capacity: 700kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Maximum Turns Preset: 9999.9
Counting Range: 0 ~ 9999.9



PLC Control Automatic Coil Winding Machine Making Coil 0

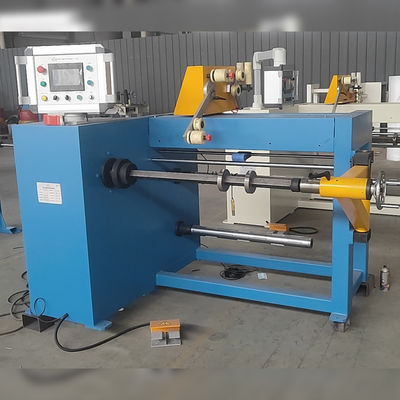

Fig 1: Automatic coil winding machine ZPX800's front view



PLC Control Automatic Coil Winding Machine Making Coil 1

Fig 2: Automatic coil winding machine ZPX800's wire guide



PLC Control Automatic Coil Winding Machine Making Coil 2PLC Control Automatic Coil Winding Machine Making Coil 3PLC Control Automatic Coil Winding Machine Making Coil 4PLC Control Automatic Coil Winding Machine Making Coil 5PLC Control Automatic Coil Winding Machine Making Coil 6PLC Control Automatic Coil Winding Machine Making Coil 7PLC Control Automatic Coil Winding Machine Making Coil 8PLC Control Automatic Coil Winding Machine Making Coil 9PLC Control Automatic Coil Winding Machine Making Coil 10
