Spot Welding Dry Transformer Foil Winding Machine Automatic Copper Strip Winder

Automatic Copper Strip Winder Spot Welding Dry Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ300-2

Automatic copper strip winder spot welding dry transformer foil winding machine BRJ300-2 is a special foil winding machine for winding transformer coils and other similar products. The transformer foil winding machine can wind copper or aluminium strip with max width 300mm. This kind of transformer foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation paper. The transformer foil winding machine adopts spot welding method to weld foil with bus bar together. With PLC control system, the transformer foil winding machine can run automatically if all of the corresponding parameters are input. Operating transformer foil winding machine is very easy through a touch screen.

Quick details of transformer foil winding machine BRJ300-2

1. Spot welding

2. Two foil decoilers

3. Pressing roller

4. Winding unit

5. Two insulation decoilers

6. Edge alignment system

7. Two deburring units

8. Pneumatic unit

Technical parameters of transformer foil winding machine BRJ300-2

Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the machine can also be manufactured as requested.

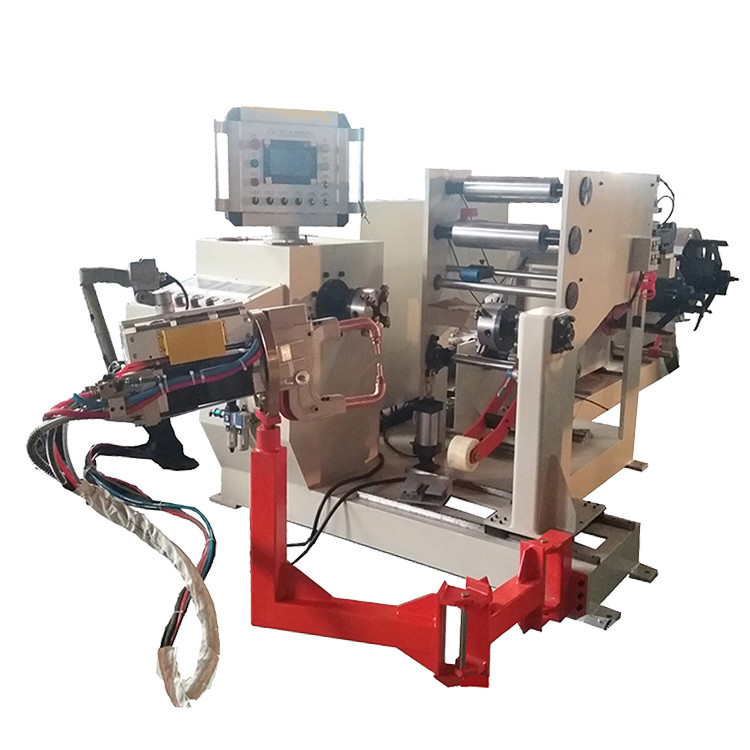

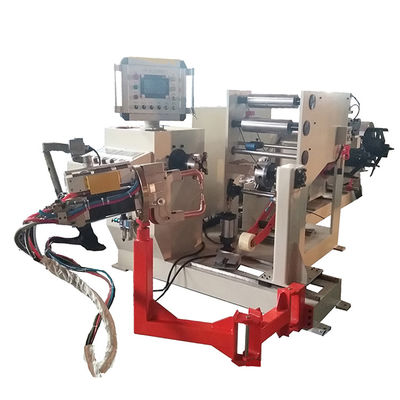

Fig 1: Transformer foil winding machine BRJ300-2's front view

Fig 2: Transformer foil winding machine BRJ300-2's decoiler
