Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Foil Winding Machine | Application: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Width: | 300mm | Insulation Paper Width: | 350mm |
| Control System: | PLC | Winding Speed: | 35rpm |
| High Light: | Spot Welding Transformer Foil Winding Machine,300mm copper coil winding machine,STT Transformer Foil Winding Machine |
||
Automatic Copper Strip Winder Spot Welding Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ300-2
Automatic copper strip winder spot welding dry transformer foil winding machine BRJ300-2 is a special foil winding machine for winding transformer coils and other similar products. The transformer foil winding machine can wind copper or aluminium strip with max width 300mm. This kind of transformer foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation paper. The transformer foil winding machine adopts spot welding method to weld foil with bus bar together. With PLC control system, the transformer foil winding machine can run automatically if all of the corresponding parameters are input. Operating transformer foil winding machine is very easy through a touch screen.
Quick details of transformer foil winding machine BRJ300-2
1. Spot welding
2. Two foil decoilers
3. Pressing roller
4. Winding unit
5. Two insulation decoilers
6. Edge alignment system
7. Two deburring units
8. Pneumatic unit
Technical parameters of transformer foil winding machine BRJ300-2
Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the machine can also be manufactured as requested.
| Max. Foil Width: | 300mm |
| Max. Axial Length ( incl. lead wire ): | 450mm |
| Finished Coil OD. : | 600mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Material Thickness: | 0.2-2.0mm |
| Al Foil Material Thickness: | 0.3-3.0mm |
| Foil Material ID.: | ≤ 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 350mm |
| Max Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Winding Speed: | 0-35 RPM |
| Winding Power: | 4kw |
| Welding: | Spot welding |
| Programming Type: | PLC |
| Operation Interface: | Touch screen |
| Counting Turn Range: | 0 - 9999.9 |

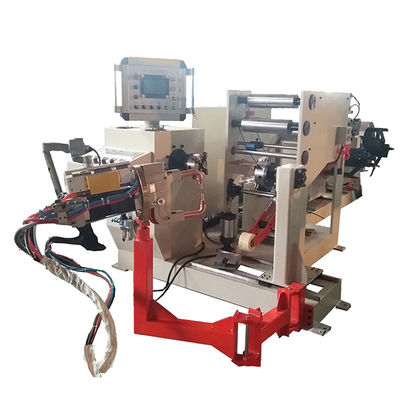

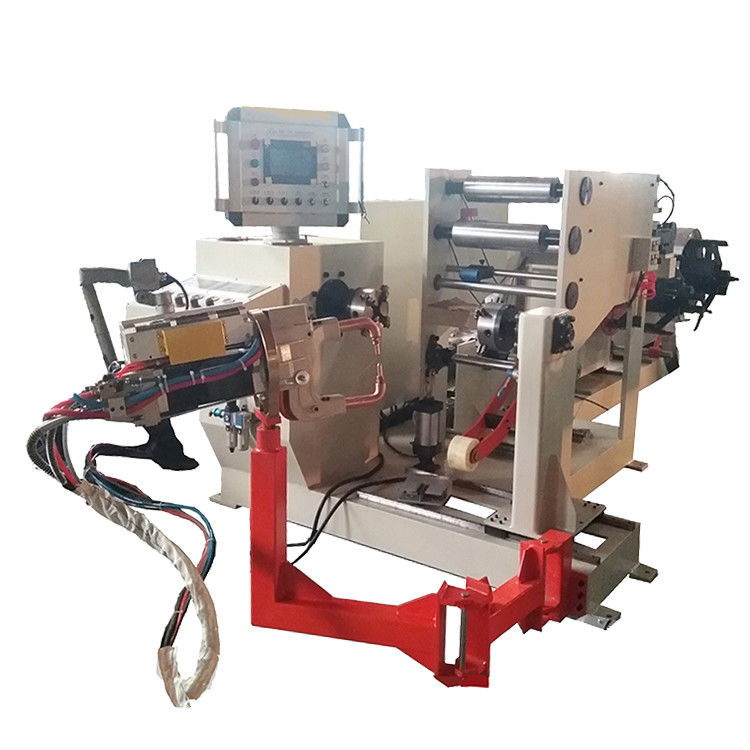

Fig 1: Transformer foil winding machine BRJ300-2's front view

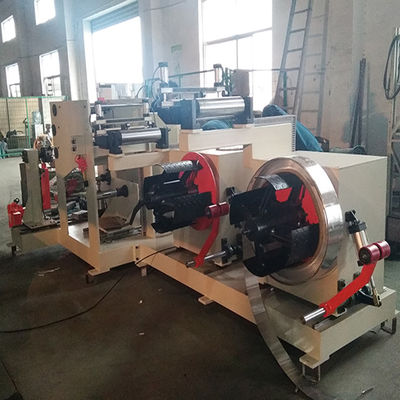

Fig 2: Transformer foil winding machine BRJ300-2's decoiler
