Automatic Silicon Steel Core Slitting Machine Máquina de corte longitudinal
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Slitting Line | Function: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Material Outer Diameter: | Ø1200mm, Maximum | Material Inner Diameter: | Ø500mm |
| Sheet Thickness: | 0.23 ~ 0.5mm | Sheet Width: | 500 ~ 1250mm |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Cutting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
Automatic Silicon Steel Core Slitting Machine Máquina de corte longitudinal
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a special cutter equipment, which is mainly used to slit silicon steel sheet to make silicon steel strip with different width. These strips can be cut to make transformer core’s legs and yokes. The core slitting machine’s control system is based on PLC. With HMI, the core slitting machine can be operated easily. The number of the cutter of the core slitting machine can be provided as requested.
Quick details of core slitting machine ZJX1250
- Decoiler expanding range Ø470 ~ 520mm
- Cutting width 500 ~ 1250 mm
- Cutting thickness 0.15 ~ 0.6mm
- Feeding speed 120m/min
- Power 46kw
- One year warranty
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 40 - 1200 mm |
| Cutting thickness: | 0.23 - 0.5 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 55 kw |

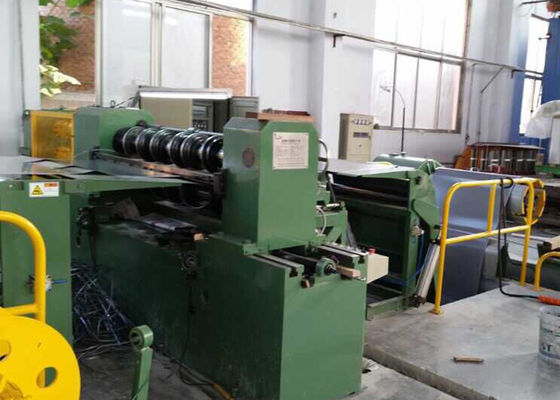

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
