| Name: | Core Slitting Machine | Function: | Slitting Silicon Steel Sheet |
|---|---|---|---|
| Decoiler: | Expanding | Cutter: | 6 Sets |
| Cutting Speed: | 120m/min | Motor Power: | 46kw |
| Color: | Customizable | Warranty: | 12 Months |
| High Light: | Core Slitting Machine 46kw,Automatic strip slitting machine,120m/min Core Slitting Machine |
||
Automatic Silicon Steel Strip Slitter Transformer Core Slitting Machine
Description of core slitting machine ZJX1250
Transformer core slitting machine ZJX1250 is mainly used to cut the silicon steel sheet for making different width strips. The width of cut strip can be preset. The slitting speed of the core slitting machine can also be set. The cut strip can be wound to coil. It is very easy to operate the core slitting machine.
Quick details of core slitting machine ZJX1250
Main parameters of transformer core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Material coil ID: | Ø495 - 510mm |
| Maximum material coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting strip width: | 500 - 1250 mm |
| Cutting strip thickness: | 0.15 - 0.6 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter number: | 6 sets |
| Cutting speed: | 120 m/min |
| Strip burring after cut: | ≤0.02 mm |
| Motor power: | 46 kw |

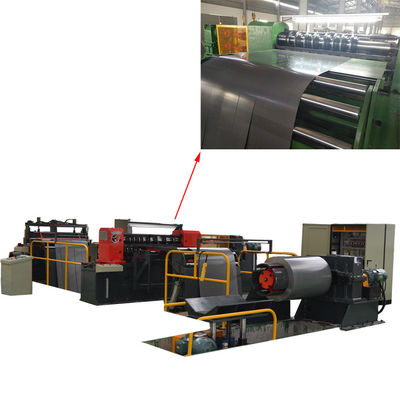

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
