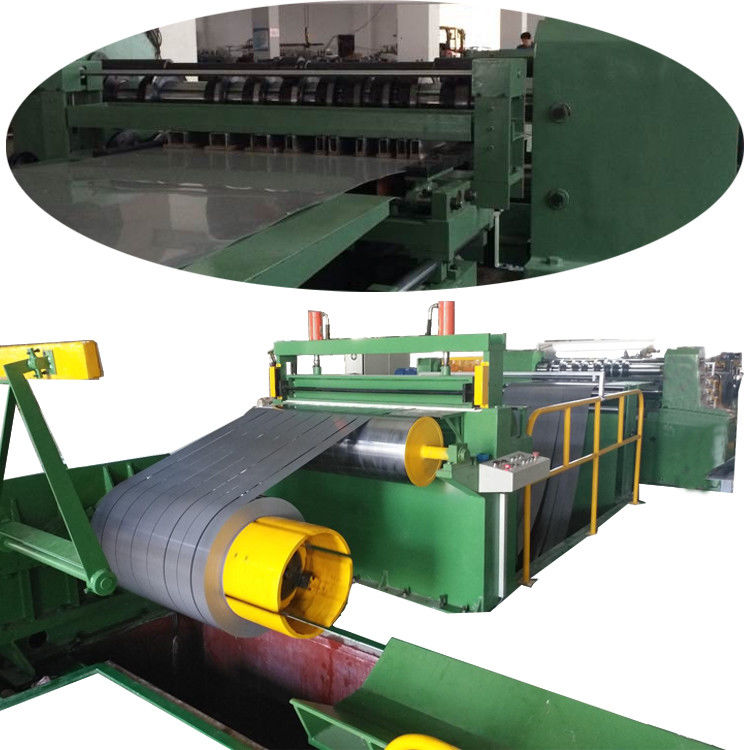

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter
Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter

Large Image :  Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Automatic Core Slitting Machine Function: Slit Silicon Steel Coils
Strip Roll OD: Maximum 1200mm Strip Roll ID: 500mm
Strip Thickness: 0.15- 0.6mm Strip Width: 500- 1250mm
Feeding Speed: Maximum 120m/min Warranty Period: 12 Months
High Light:

Automatic steel coil slitter

,

500mm silicon steel slitting machine

,

120m/min steel coil slitter

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitting Machine





Description of core slitting machine ZJX1250



Silicon steel strip core slitting machine ZJX1250 is a special machine for cutting the silicon steel sheet into different width strip. The strip width can be preset. After cutting, the cut strip can be wound with tension, which can make the coil compacted. The maximum width of the material is 1250mm, and the minimum width of the cut strip is 40mm. The core slitting machine is widely used in many areas, including transformer making area.





Quick details of core slitting machine ZJX1250



  • Decoiler expanding range: Ø470 ~ 520mm
  • Strip roll material ID:500mm
  • Strip material width 500 ~ 1250 mm
  • Strip thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Slit sheet width: 40-1250mm
  • Motor power 46kw



Main parameters of transformer core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

Decoiler expanding range: Ø470 - 520mm
Strip roll material ID: Ø500mm
Maximum strip roll material OD: Ø1200mm
Maximum strip roll weight: 5000kg
Strip material width: 500 - 1250 mm
Strip material thickness: 0.15 - 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter number: 6 sets
Cutting speed: 120 m/min, maximum
Slit strip width: 40-1250mm
Strip burring after cut: ≤0.02 mm
Motor power: 46 kw


Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 0

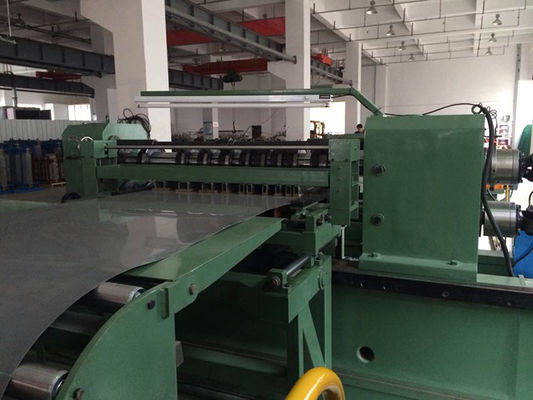

Fig 1: Core slitting machine ZJX1250's front view

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 1
Fig 2: Core slitting machine ZJX1250's winder

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 2
Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 3
Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 4

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 5
Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 6
Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 7
Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter 8
