| Name: | Transformer Core Slitting Machine | Cutting Thickness: | 0.15 ~ 0.6mm |
|---|---|---|---|
| Cutting Width: | 500 ~ 1250 Mm | Cutter: | 6 Sets |
| Feeding Speed: | 120 M/min | Color: | Customized |
| Warranty: | 12 Months | ||
| High Light: | 46kw Core Slitting Machine,Transformer Silicon Steel Slitting Machine,1250 mm Core Slitting Machine |
||
Automatic Silicon Steel Transformer Core Slitting Machine
Quick detail of core slitting machine ZJX1250
Description of core slitting machine ZJX1250
Automatic Transformer Core Silicon Steel Slitting Machine ZJX1250 is a type of production processing equipment that cuts a coiled silicon steel strip into silicon steel strips with a set width, then the strips will be wound into coils. The slitting speed can be adjusted.
Main Components
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main Parameters
Typical standard specifications of ZJX1250 are shown below, however these can be easily modified as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 500 ~ 1250 mm |
| Cutting thickness: | 0.15 ~ 0.6 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 46 kw |

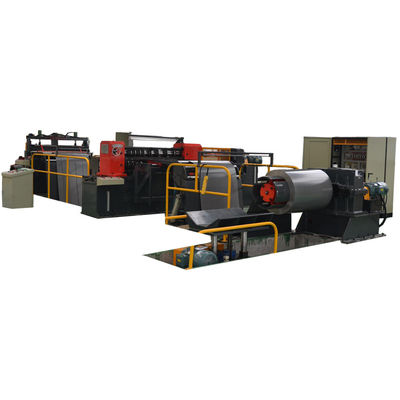

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
