| Product Name: | Core Slitting Machine | Function: | Slitting Silicon Steel |
|---|---|---|---|
| Cutting Strip Width: | 500 - 1250mm | Strip Thickness: | 0.15- 0.6mm |
| Max. Feeding Speed: | 120 M/min | Power: | 46kw |
| Cutter: | 6 Sets | Warranty Period: | 12 Months |
| High Light: | Transformer Core Slitting Machine,Automatic silicon steel cutting machine,120 m/min Core Slitting Machine |
||
Automatic Silicon Steel Cutting Machine Transformer Core Slitting Machine
Description of transformer core slitting machine ZJX1250
Transformer Core Slitting Machine ZJX1250 is a professional equipment for slitting silicon steel to make strip. The transformer core slitting machine can cut the strip with set width. After slitting the strip, the transformer core slitting machine can wind the slit strip. The transformer core slitting machine can set the slitting speed. It is very easy to operate the transformer core slitting machine.
Quick details of transformer core slitting machine ZJX1250
Main components of transformer core slitting machine ZJX1250
1. Decoiler
2. Material receiver
3. Movable guide
4. Slitting device
5. Tensor
6. Winder
7. Pneumatic system
8. Control cabinet
Main parameters of transformer core slitting machine ZJX1250
Typical standard specifications of ZJX1250 are shown below, however these can be easily modified as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Material coil ID: | Ø495 - 510mm |
| Maximum material coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting strip width: | 500 - 1250 mm |
| Cutting strip thickness: | 0.15 - 0.6 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding strip speed: | 120 m/min |
| Cutting strip burring: | ≤0.02 mm |
| Power: | 46 kw |

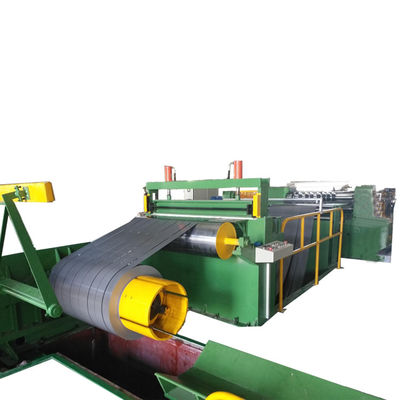

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
