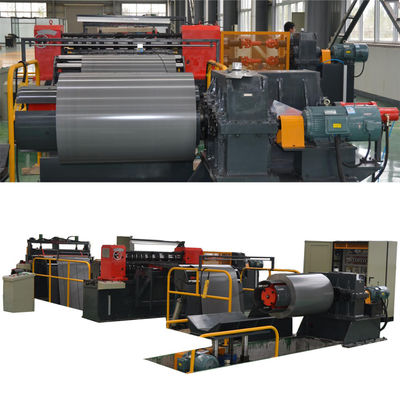

6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip

6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip

6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip
6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip

Large Image :  6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Core Slitting Machine Sheet Thickness: 0.15 ~ 0.6mm
Cutting Width: 500 ~ 1250 Mm Cutter Number: 6 Sets
Cutting Speed: 120 M/min Machien Color: Customized
Warranty Time: 12 Months Power: 46kw
High Light:

6 sets Silicon Steel Slitting Machine

,

Transformer Core Slitting Machine

,

1250 mm Silicon Steel Slitting Machine

Silicon Steel Slitter Transformer Core Slitting Machine Making Steel Strip





Description of core slitting machine ZJX1250



Automatic transformer core slitting machine ZJX1250 is for cutting coiled silicon steel into several silicon steel strips with a set width. The cut strips can be wound into coils. The slitting speed of the core slitting machine can be adjusted as requested. The machine is very easy to be operated.





Quick details of core slitting machine ZJX1250



  • Decoiler diameter range Ø470mm ~ Ø520mm
  • Cut width 500 ~ 1250 mm
  • Sheet thickness 0.15 ~ 0.6mm
  • 6 sets cutters
  • Feeding speed 120m/min
  • Motor ower 46kw
  • Customizable color
  • One year warranty



Main parameters of core slitting machine ZJX1250



Typical standard specifications of slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

Decoiler diameter range: Ø470mm -Ø520mm
Sheet coil ID: Ø495mm - Ø510mm
Maximum sheet coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 - 1250 mm
Sheet thickness: 0.15 - 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Cutting speed: 120 m/min
Cutting burring: ≤0.02 mm
Motor power: 46 kw


6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 0
Fig 1: Core slitting machine ZJX1250's front view

6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 1
Fig 2: Core slitting machine ZJX1250's winder

6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 2
6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 3
6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 4

6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 5
6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 6
6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 7
6 Sets Cutters Silicon Steel Slitting Machine Transformer Core Slitter Making Steel Strip 8
