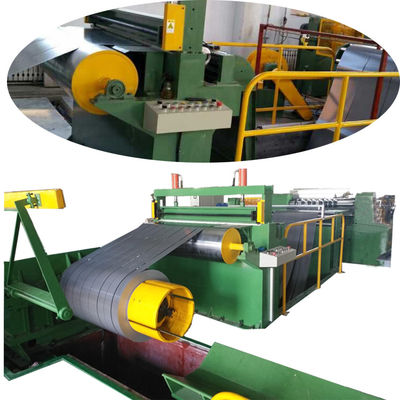

Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated

Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated

Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated
Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated

Large Image :  Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Core Slitting Machine Usage: Slit Silicon Steel Coils
Strip Roll OD Maximum: 1200mm Strip Roll ID: 500mm
Strip Thickness: 0.15- 0.6mm Strip Width: 500- 1250mm
Cutting Speed: Maximum 120m/min Warranty: 12 Months
High Light:

120m/min Automatic Core Slitting Machine

,

500mm steel coil slitting machine

,

1200mm Core Slitting Machine

Easy Operated Silicon Steel Coil Slitting Line Automatic Core Slitting Machine





Description of core slitting machine ZJX1250



The core slitting machine ZJX1250 is a special equipment for making strips from a big coil. The core slitting machine is also called vertical slitting line, which is mainly used to slit silicone steel coil and other similar material into strip with different widths. The slit metal strips are wound at the end of the slitting machine and the slit strips can be used in transformers, motors and other similar products. The slit strip width can be preset and the slit strip can be wound into coils. The maximum width of the silicon steel material is 1250mm, and the minimum width of the slit strip is 40mm. The core slitting machine is widely used in many areas, including transformer making area.





Quick details of core slitting machine ZJX1250



  • Decoiler expanding range: Ø470 ~ 520mm
  • Strip roll material ID:500mm
  • Strip material width 500 ~ 1250 mm
  • Strip thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Slit sheet width: 40-1250mm
  • Motor power 46kw



Main parameters of transformer core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

Decoiler expanding range: Ø470 - 520mm
Silicon steel roll material ID: Ø500mm
Maximum silicon steel roll material OD: Ø1200mm
Maximum silicon steel roll weight: 5000kg
Silicon steel material width: 500 - 1250 mm
Silicon steel material thickness: 0.15 - 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter number: 6 sets
Cutting speed: 0 - 120 m/min
Slit strip width: 40-1250mm
Strip burring after cut: ≤0.02 mm
Motor power: 46 kw


Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 0

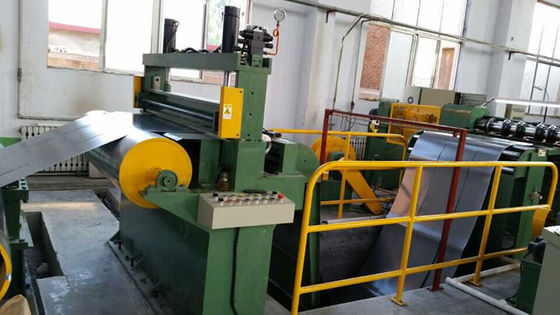

Fig 1: Core slitting machine ZJX1250's front view

Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 1
Fig 2: Core slitting machine ZJX1250's winder

Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 2
Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 3
Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 4

Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 5
Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 6
Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 7
Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated 8
