20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder

1 set
MOQ
negotiable
Price
20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Simple Transformer Foil Winding Machine
Highlight:

20rpm power transformer winding machine

,

15kw lv winding machine

,

15kw power transformer winding machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: JJ-BRJ800-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Simple Copper and Aluminium Strip Winder LV Transformer Foil Winding Machine





Description of transformer foil winding machine JJ-BRJ800-2



Simple transformer foil winding machine JJ-BRJ800-2 is one of simple and practical transformer foil winding machines, which can be used to wind dry type transformer foil coils. The kind of transformer foil winding machine can handle one or two layers of copper or aluminium foil conductors and one or two layers of insulation paper. It is very easy to operate the kind of foil winding machine.





Main components of transformer foil winding machine JJ-BRJ800-2



  • simple frame
  • Winding foil unit
  • Two foil decoilers
  • Two insulation decoilers
  • Control system based on PLC
  • Counter
  • Foot pedal
  • Electric cabinet



Main parameters of transformer foil winding machine JJ-BRJ800-2



Foil Width: Maximum 800mm
Wound Coil Shape: oval, round and rectangular
Foil Material OD.: ≤1,000mm
Foil Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 850mm
Foil Decoiler Expanding Range: 400-520mm
Winding Motor: 15KW
Winding Shaft Size: 80×80×1150 mm
Rotating Speed: 0～20 Rpm
Insulation Decoiler Number: 2 pcs
Insulation Material OD.: ≤400mm
Insulation Material ID.: 76mm
Insulation Decoiler Length: 850mm
Counting Range: 0 - 9999.9



20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 0

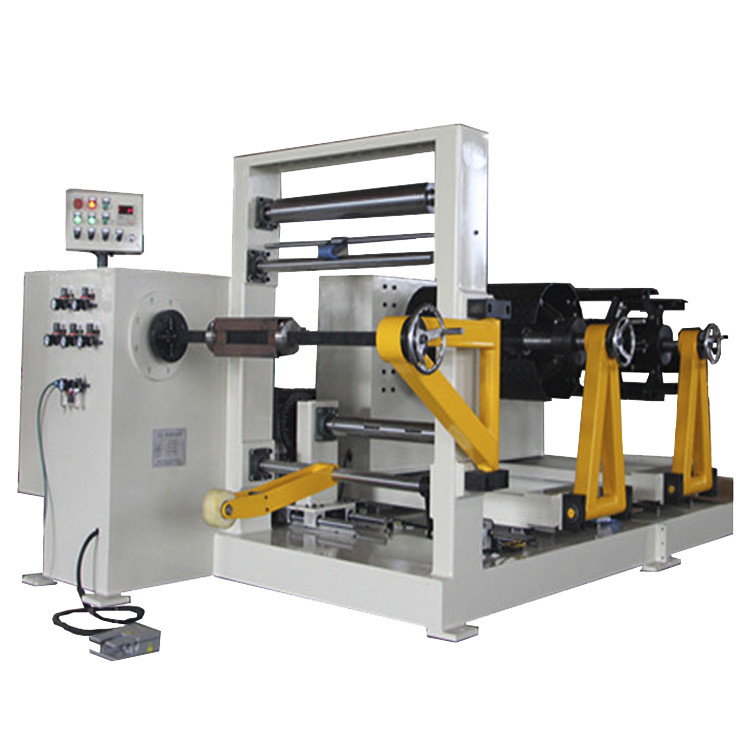

Fig 1: Transformer foil winding machine JJ-BRJ800-2's full view



20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 1

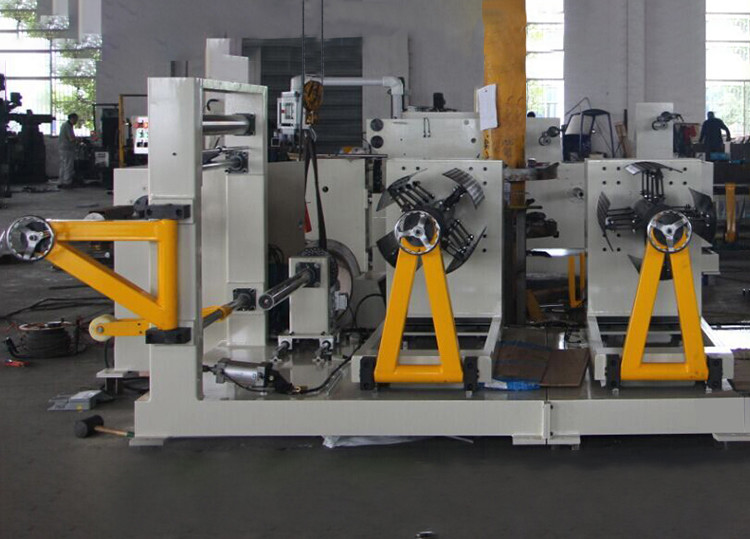

Fig 2: Transformer foil winding machine JJ-BRJ800-2's foil decoiler



20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 220rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 320rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 420rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 520rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 620rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 720rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 820rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder 9
