Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Foil Winding Machine | Application: | Winding Transformer Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Decoiler Number: | Two Pieces | Decoiler Diameter: | 420 ~ 520mm |
| Motor Power: | 11kw | Machine Color: | Optional |
| Highlight: | Cast Resin Transformer Foil Winding Machine,11kw copper wire coil winding machine,11kw 3mm Transformer Foil Winding Machine |
||
Simple Cheap Conductor Strip Winder Cast Resin Transformer Foil Winding Machine
Description of transformer foil winding machine JJ-BRJ600-2
Simple transformer foil winding machine JJ-BRJ600-2 is one model of simple transformer foil winding machine. The kind of transformer foil winding can be used to wind two layers of copper or aluminium foil conductors and two layers of insulation paper. The transformer foil winding machine features simple structure, easy operation, cheap and so on.
Main components of transformer foil winding machine JJ-BRJ600-2
Main parameters of transformer foil winding machine JJ-BRJ600-2
| Wound Coil Shape: | oval, round and rectangular |
| Conductor Foil Material OD.: | ≤1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 650mm |
| Foil Decoiler Expanding Range: | 400-520mm |
| Winding Motor Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Rotating Speed: | 0～26 Rpm |
| Insulation Decoiler Quantity: | 2 pcs |
| Insulation Material OD.: | ≤400mm |
| Insulation Material ID.: | 76mm |
| Insulation Decoiler Length: | 650mm |
| Counting Range: | 0 - 9999.9 |

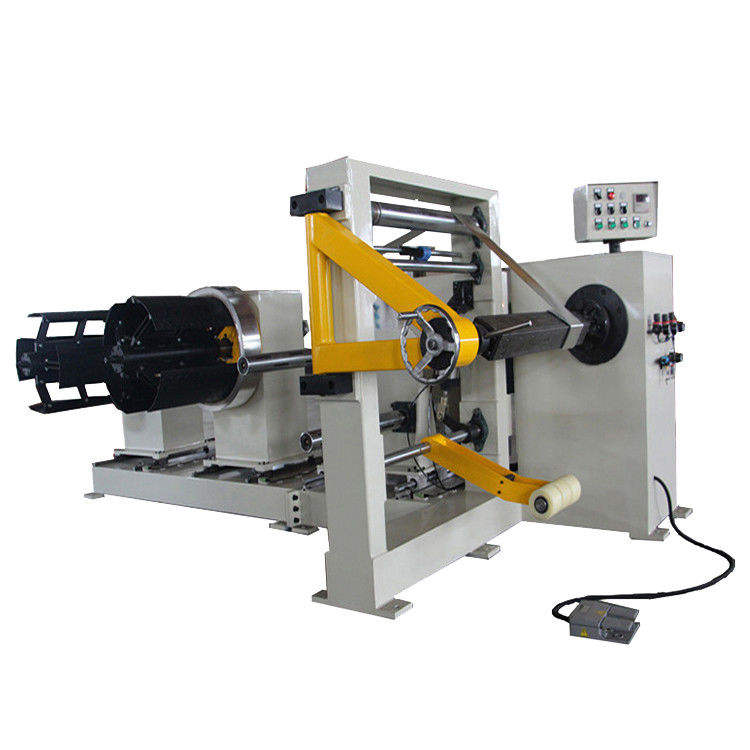

Fig 1: Transformer foil winding machine JJ-BRJ600-2's full view
Fig 2: Transformer foil winding machine JJ-BRJ600-2's foil decoiler
