Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine

Description of core slitting machine ZJX1250

Silicon steel strip core slitting machine ZJX1250 is a professional equipment for shearing the rolled silicon steel strips. The core slitting machine can shear the strip according to a preset width, then wind the slit strips into coils. With the tension provided by the machine, the wounded coils is very compacted. The core slitting machine is very easy operated.

Quick details of core slitting machine ZJX1250

• Decoiler diameter Ø470 ~ 520mm
• Strip roll material ID:500mm
• Strip width 500 ~ 1250 mm
• Strip thickness 0.15 ~ 0.6mm
• 6 sets of cutters
• Cutting speed 120m/min
• Slit sheet width: 40-1250mm
• Motor power 46kw

Main parameters of transformer core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

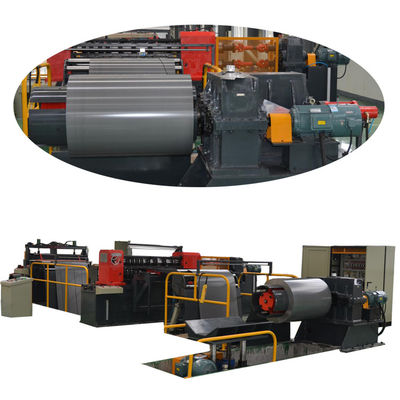

Fig 1: Transformer core slitting machine ZJX1250's full view

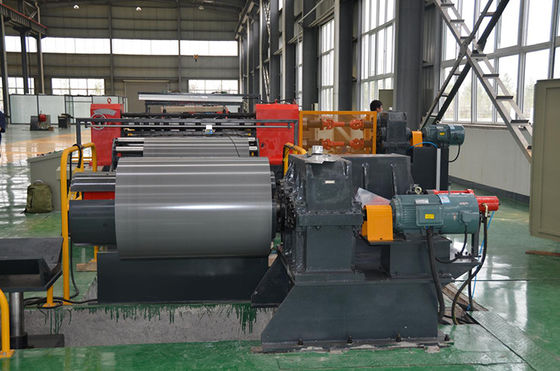

Fig 2: Transformer core slitting machine ZJX1250's decoiler
