1200mm Automatic Core Slitting Machine For Slit Silicon Steel Sheet
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Slitting Line | Usage: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Material Outer Diameter: | Ø1200mm, Maximum | Material Inner Diameter: | Ø500mm |
| Slitting Thickness: | 0.23 ~ 0.5mm | Slitting Width: | 500 ~ 1250mm |
| Color: | As Requested | Warranty Period: | 12 Months |
| Cutting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | 1200mm core slitting machine,Automatic core slitting machine,core slitting machine Automatic |
||
Automatic Slitter cortadeira Core Slitting Machine
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a professional cutting equipment. The core slitting machine is mainly used to slit silicon steel sheet to make different width of silicon steel strip. These slit strips can be used to make transformer core’s legs and yokes and other similar products. With PLC control system, the core slitting machine is with high automation. The core slitting machine is provided with HMI, which makes the core slitting machine be operated very easily. The core slitting machine features smooth running and easy operation and so on.
Quick details of core slitting machine ZJX1250
l Decoiler expanding range Ø470 ~ 520mm
l Cutting width 500 ~ 1250 mm
l Cutting thickness 0.15 ~ 0.6mm
l Feeding speed 120m/min
l Power 46kw
l One year warranty
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
|
Decoiler expanding range: |
Ø470 - 520mm |
|
Coil ID: |
Ø495 - 510mm |
|
Maximum coil OD: |
Ø1200mm |
|
Maximum coil weight: |
5000kg |
|
Cutting width: |
40 - 1200 mm |
|
Cutting thickness: |
0.23 - 0.5 mm |
|
Cutting width tolerance: |
±0.10mm |
|
Cutter: |
6 sets |
|
Feeding speed: |
120 m/min |
|
Cutting burring: |
≤0.02 mm |
|
Power: |
55 kw |
Fig 1: Core slitting machine ZJX1250's front view

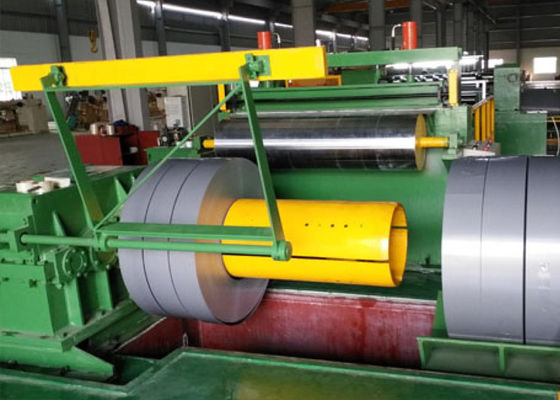

Fig 2: Core slitting machine ZJX1250's winder
