Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min
Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min

Large Image :  Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Core Slitting Machine Function: Slit Silicon Steel Coil
Strip Roll OD: 1200mm, Maximum Strip Roll ID: 500mm
Strip Thickness: 0.15- 0.6mm Strip Width: 500- 1250mm
Color: As Requested Warranty Period: 12 Months
High Light:

Silicon Steel Core Slitting Machine

,

500mm metal coil slitting machine

,

Core Slitting Machine 120m/min

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine





Description of core slitting machine ZJX1250



Silicon steel strip core slitting machine ZJX1250 is a professional equipment for shearing the rolled silicon steel strips. The core slitting machine can shear the strip according to a preset width, then wind the slit strips into coils. With the tension provided by the machine, the wounded coils is very compacted. The core slitting machine is very easy operated.





Quick details of core slitting machine ZJX1250

  • Decoiler diameter Ø470 ~ 520mm
  • Strip roll material ID:500mm
  • Strip width 500 ~ 1250 mm
  • Strip thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Cutting speed 120m/min
  • Slit sheet width: 40-1250mm
  • Motor power 46kw



Main parameters of transformer core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

Decoiler expanding range: Ø470 - 520mm
Material coil ID: Ø500mm
Maximum material coil OD: Ø1200mm
Maximum coil weight: 5000kg
Strip width: 500 - 1250 mm
Strip thickness: 0.15 - 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter number: 6 sets
Cutting speed: 120 m/min
Slit strip width: 40-1250mm
Strip burring after cut: ≤0.02 mm
Motor power: 46 kw

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min 0

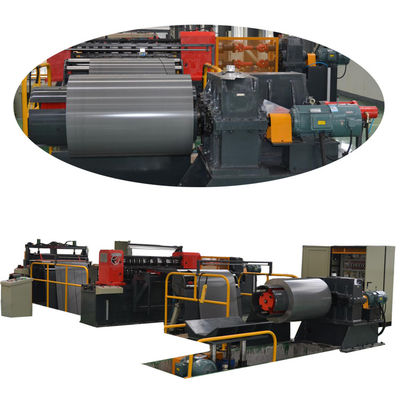

Fig 1: Transformer core slitting machine ZJX1250's full view



Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min 1

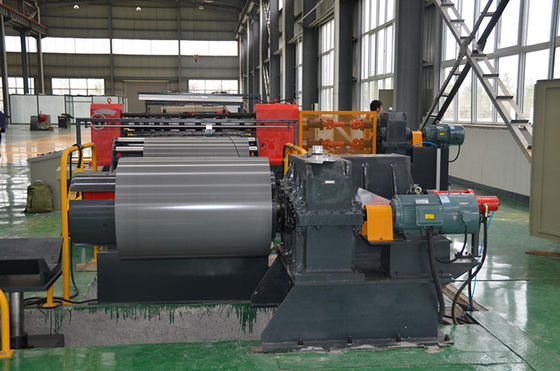

Fig 2: Transformer core slitting machine ZJX1250's decoiler

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min 2

Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min 3Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min 4Automatic Longitudinal Shearing Line Silicon Steel Core Slitting Machine 120m/min 5
