Name: Automatic Winder Coil And Foil Winding Machine
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: BRJ400-2
Price: 30,000.00 USD
Availability: InStock

Automatic Winder Coil And Foil Winding Machine

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Coil And Foil Winding Machine

Foil Width: 150 ~ 400mm

Welding Mode: TIG

Cu Foil Thickness: 0.2 ~ 2.0mm

Al Foil Thickness: 0.3 ~3.0mm

Rotating Speed: 0 ~ 80 Rpm

Motor Power: 7.5kw

Machine Color: Optional

Highlight:

Automatic Winder Foil Winding Machine

Coil And Foil Winding Machine

Automatic Winder Coil Winding Machine

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: BRJ400-2

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 45 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

Automatic Winder Coil And Foil Winding Machine

Product Description

Automatic Winder Coil And Foil Winding Machine

Introduction

Automatic coil and foil winding machine BRJ400-2 can be used to wind both foil and wire. The coil and foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. The machine can be also used to wind wire with maximum winding width 400mm. The machine is provided with two sets of operation interfaces, one is for winding foil coil, another is for winding wire coil. The two sets of interfaces can be switched easily through the touch screen.

Technical Parameter

Typical standard specifications of coil and foil winding machine BRJ400-2 are shown below and the coil and foil winding machine can also be manufactured as requested.

For Winding Foil:
Max foil width:	400mm
Max Rotating Diameter:	Ø600mm
Coil shape:	oval, round, rectangle
Conductor material:	Copper / Aluminum foil
Al foil thickness:	0.3～3.0 mm
Cu foil thickness:	0.2～2.0 mm
Foil decoiler:	2 sets
Max foil decoiler capacity:	750kg
Alignment method:	Photoelectric automatic correction
Winding power:	7.5KW
Center height:	1000mm
Insulation axis:	2 sets
Layer insulation roll OD:	≤Ø400mm
Layer insulation roll ID:	Ø76mm
Countering range:	0.0~9999.9
Countering precision:	0.1 circle
Function:	Segmented input, reversible, power off memory, etc.
Welding way:	TIG
For Winding Wire:
Max. wound coil OD.:	400mm
Maximum Wire Winding Width:	400mm
Round Wire Size:	0.3~6.0mm
Maximum Flat Wire Size:	4x10mm
Maximum Winding Speed:	80rpm

Automatic Winder Coil And Foil Winding Machine 0

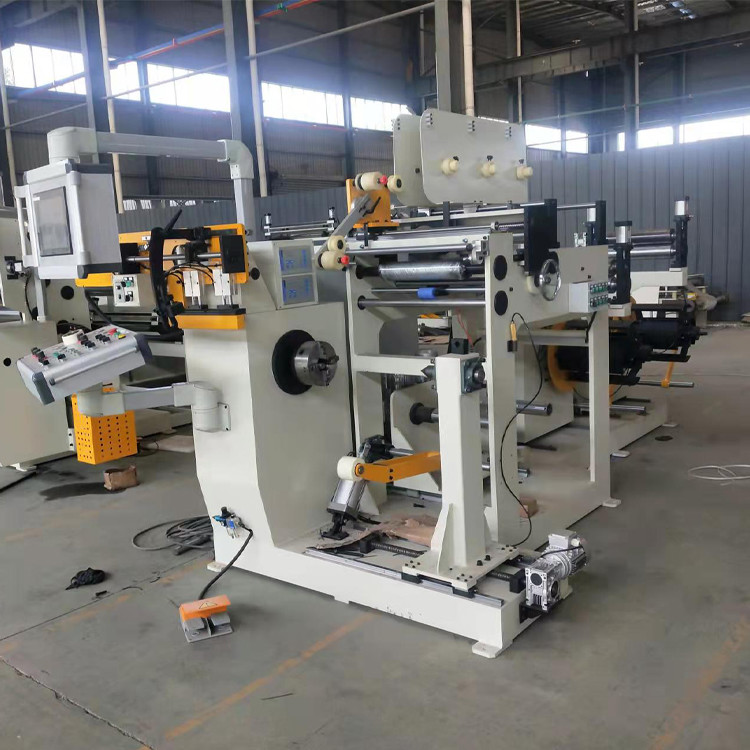

Fig 1: Transformer coil and foil winding machine BRJ400-2's front view

Fig 2: Transformer coil and foil winding machine BRJ400-2's side view

Automatic Winder Coil And Foil Winding Machine 6
