Cast Resin Transformer Foil Winding Machine Conductor Strip Winder

1 set
MOQ
negotiable
Price
Cast Resin Transformer Foil Winding Machine Conductor Strip Winder
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Transformer Foil Winding Machine
Application: Winding Transformer Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm
Al Foil Thickness: 0.3 - 3.0mm
Decoiler Number: Two Pieces
Decoiler Diameter: 420 ~ 520mm
Motor Power: 11kw
Machine Color: Optional
Highlight:

Cast Resin Transformer Foil Winding Machine

,

11kw copper wire coil winding machine

,

11kw 3mm Transformer Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: JJ-BRJ600-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Simple Cheap Conductor Strip Winder Cast Resin Transformer Foil Winding Machine





Description of transformer foil winding machine JJ-BRJ600-2



Simple transformer foil winding machine JJ-BRJ600-2 is one model of simple transformer foil winding machine. The kind of transformer foil winding can be used to wind two layers of copper or aluminium foil conductors and two layers of insulation paper. The transformer foil winding machine features simple structure, easy operation, cheap and so on.





Main components of transformer foil winding machine JJ-BRJ600-2

  • Iron frame
  • Winding unit
  • Foil decoilers
  • Insulation decoilers
  • Control system
  • Counter
  • Foot pedal
  • Electric cabinet



Main parameters of transformer foil winding machine JJ-BRJ600-2



Wound Coil Shape: oval, round and rectangular
Conductor Foil Material OD.: ≤1,000mm
Conductor Foil Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 650mm
Foil Decoiler Expanding Range: 400-520mm
Winding Motor Power: 11KW
Winding Shaft Size: 80×80×950 mm
Rotating Speed: 0～26 Rpm
Insulation Decoiler Quantity: 2 pcs
Insulation Material OD.: ≤400mm
Insulation Material ID.: 76mm
Insulation Decoiler Length: 650mm
Counting Range: 0 - 9999.9



Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 0

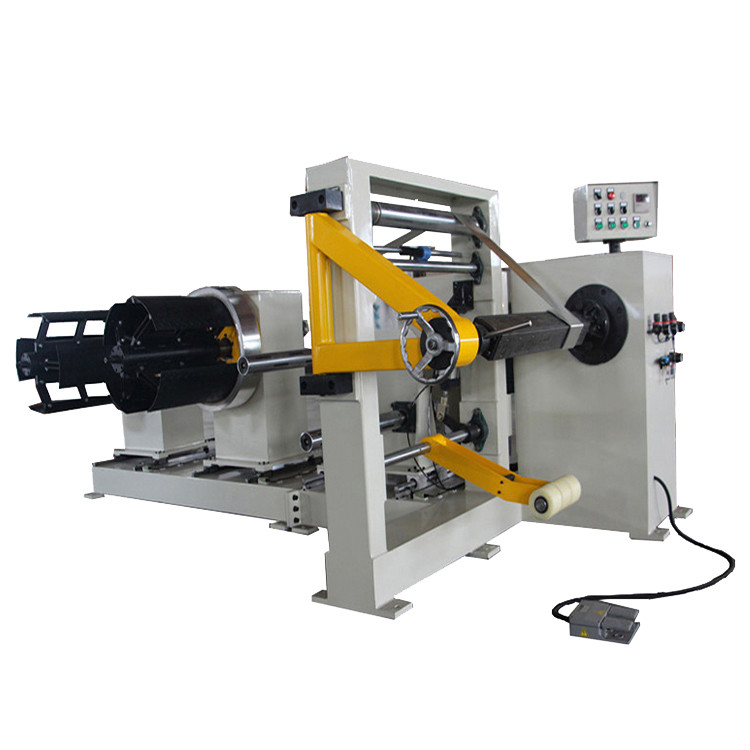

Fig 1: Transformer foil winding machine JJ-BRJ600-2's full view



Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 1

Fig 2: Transformer foil winding machine JJ-BRJ600-2's foil decoiler



Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 2Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 3Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 4Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 5Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 6Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 7Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 8Cast Resin Transformer Foil Winding Machine Conductor Strip Winder 9
