Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed

PLC Control Servo Motor Drive Wire Guide Small Sized Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX400

Transformer coil winding machine ZPX400 is one kind of small winding machine. This kind of transformer coil winding machine can be used to wind copper or aluminium flat or round wires. The transverse length of this kind of transformer coil winding machine can reach 400mm. The transformer coil winding machine is provided with main winding motor to drive the winding shaft, servo motor to drive wire guide, a colored touch screen with user friendly interface, a foot pedal for controlling the machine and switching the rotating direction and so on. The transformer coil winding machine can wind different shapes of coil, which depends on the shape of the mould. The finished coils can be used in transformers and other similar products. The transformer coil winding machine features slow starting, smooth running, full function, high automation, and easy operating etc.

Quick details of transformer coil winding machine ZPX400

• 2.2kw motor
• 400 rpm winding speed
• PLC control system
• Winding flat or round wire
• pneumatic system
• Foot pedal

Technical Parameters of transformer coil winding machine ZPX400

Typical standard specifications of transformer coil winding machine ZPX400 are shown below, however these can be easily modified as requested.

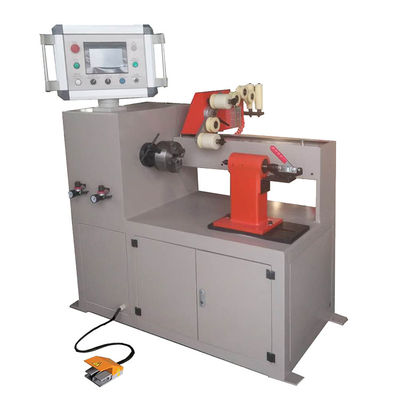

Fig 1: Transformer coil winding machine ZPX400's front view

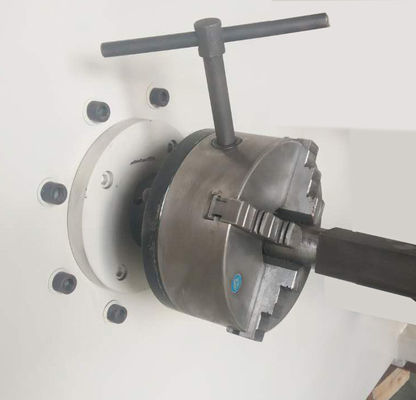

Fig 2: Transformer coil winding machine ZPX400's 4-jaw chuck
