Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed

Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed

Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed
Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed

Large Image :  Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Coil Winding Machine Application: Winding Wire Coil
Wire Material: Copper Or Aluminium Wire Wire Type: Flat Or Round Wire
Wire Guide: 1 Pc Servo Motor: 0.75kw
Winding Power: 2.2kw Winding Speed: 400rpm
High Light:

Servo Motor small transformer winding machine

,

mini transformer winding machine 400rpm

,

small transformer winding machine 400rpm

PLC Control Servo Motor Drive Wire Guide Small Sized Transformer Coil Winding Machine





Description of transformer coil winding machine ZPX400



Transformer coil winding machine ZPX400 is one kind of small winding machine. This kind of transformer coil winding machine can be used to wind copper or aluminium flat or round wires. The transverse length of this kind of transformer coil winding machine can reach 400mm. The transformer coil winding machine is provided with main winding motor to drive the winding shaft, servo motor to drive wire guide, a colored touch screen with user friendly interface, a foot pedal for controlling the machine and switching the rotating direction and so on. The transformer coil winding machine can wind different shapes of coil, which depends on the shape of the mould. The finished coils can be used in transformers and other similar products. The transformer coil winding machine features slow starting, smooth running, full function, high automation, and easy operating etc.





Quick details of transformer coil winding machine ZPX400



  • 2.2kw motor
  • 400 rpm winding speed
  • PLC control system
  • Winding flat or round wire
  • pneumatic system
  • Foot pedal



Technical Parameters of transformer coil winding machine ZPX400



Typical standard specifications of transformer coil winding machine ZPX400 are shown below, however these can be easily modified as requested.

Center Height: 800mm
Tailstock: Live center
Winding Power: 2.2kw
Winding Speed: 0-400 rpm
Speed Regulation: stepless speed regulation
Control System: PLC
Flat Wire Maximum: 2.0x8.0mm
Round Wire Diameter: 0.3-4.0mm
Max Winding Height: 400mm
Max Rotation Diameter: 500mm
Automatic Wire Laying Function: Min. Spread Pitch: 0.01mm
Basic Function: 5-digit counting
Counting Turn Range: 0 - 9999.9

Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 0

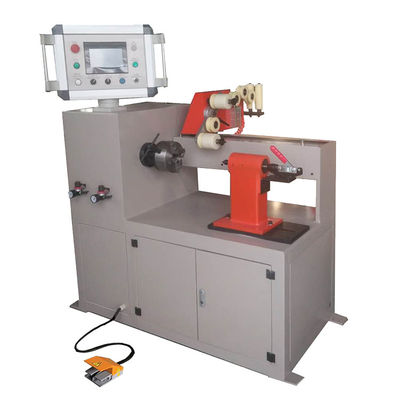

Fig 1: Transformer coil winding machine ZPX400's front view



Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 1

Fig 2: Transformer coil winding machine ZPX400's 4-jaw chuck

Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 2Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 3Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 4Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 5Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 6Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 7Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 8Servo Motor Drive Wire Guide Small Transformer Winding Machine 400rpm Winding Speed 9
