Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm

1 set
MOQ
USD10000 - 20000
Price
Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Transformer Foil Winding Machine
Application: Winding Foil Coil
Cu Foil Thickness: 0.2 ~ 2.0mm
Al Foil Thickness: 0.3 ~ 3.0mm
Decoiler Number: Two Pieces
Decoiler Diameter: 420 ~ 520mm
Motor Power: 11kw
Machine Color: Optional
Highlight:

Transformer Aluminium Foil Winding Machine

,

3.0mm Aluminium Foil Winding Machine

,

Al Transformer Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: JJ-BRJ1000-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Simple Máquina de bobinado de láminas de aluminio Transformer Foil Winding Machine





Description of transformer foil winding machine JJ-BRJ800-2



Transformer foil winding machine JJ-BRJ1000-2 is one kind of simple and easy operating foil winding machine. The foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. This kind of transformer foil winding machine features simple structure, easy operating, practical, smooth running, and so on.





Main components of transformer foil winding machine JJ-BRJ1000-2

  • simple frame
  • Winding unit
  • Two foil dereelers
  • Two insulation dereelers
  • PLC control system
  • Counter
  • Foot pedal
  • Electric cabinet



Main parameters of transformer foil winding machine JJ-BRJ1000-2



Foil Width: 200 ~ 800mm
Wound Coil Shape: oval, round and rectangular
Maximum Foil Material OD.: Φ1,000mm
Foil Material ID.: Φ500mm
Foil Dereeler: 2 pcs
Foil Decoiler Length: 850mm
Foil Decoiler Expanding Range: Φ420 ~ Φ520mm
Winding Motor: 11KW
Winding Shaft Size: 80×80×1150 mm
Rotating Speed: 0～20 Rpm
Insulation Dereeler: 2 pcs
Maximum Insulation Material OD.: 400mm
Insulation Material ID.: Φ76mm
Insulation Dereeler Length: 850mm
Counting Range: 0 - 9999.9

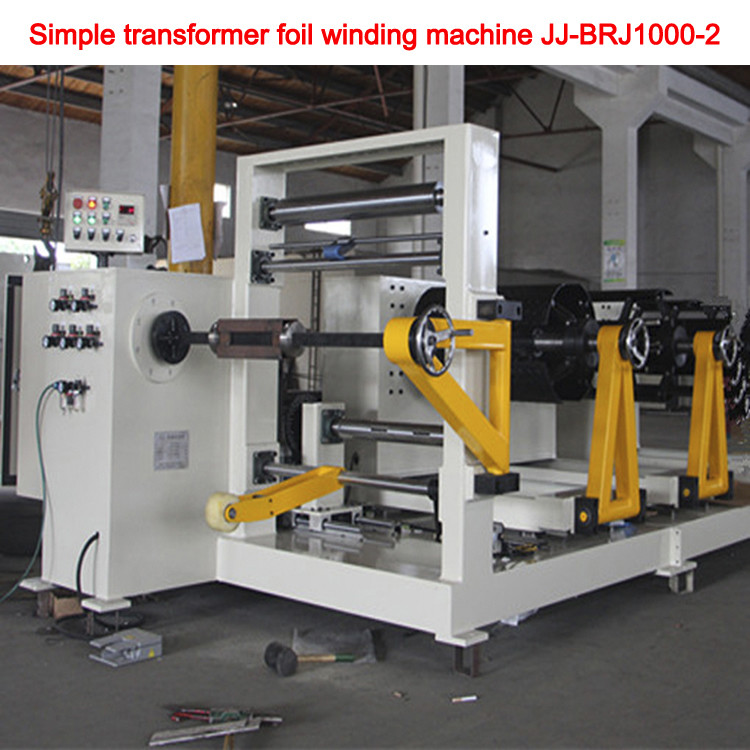

Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 0

Fig 1: Transformer foil winding machine JJ-BRJ1000-2's front view



Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 1

Fig 2: Transfomrer foil winding machine JJ-BRJ1000-2's side view



Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 2

Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 3Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 4Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 5Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 6Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 7Transformer Simple Aluminium Foil Winding Machine Al Thickness 0.3-3.0mm 8
