| Product Name: | Transformer Foil Winding Machine | Application: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Decoiler Number: | Two Pieces | Decoiler Diameter: | 420 ~ 520mm |
| Motor Power: | 11kw | Machine Color: | Optional |
| High Light: | Transformer Aluminium Foil Winding Machine,3.0mm Aluminium Foil Winding Machine,Al Transformer Foil Winding Machine |
||
Simple Máquina de bobinado de láminas de aluminio Transformer Foil Winding Machine
Description of transformer foil winding machine JJ-BRJ800-2
Transformer foil winding machine JJ-BRJ1000-2 is one kind of simple and easy operating foil winding machine. The foil winding machine can be used to wind one or two layers of foil and one or two layers of insulation paper. This kind of transformer foil winding machine features simple structure, easy operating, practical, smooth running, and so on.
Main components of transformer foil winding machine JJ-BRJ1000-2
Main parameters of transformer foil winding machine JJ-BRJ1000-2
| Foil Width: | 200 ~ 800mm |
| Wound Coil Shape: | oval, round and rectangular |
| Maximum Foil Material OD.: | Φ1,000mm |
| Foil Material ID.: | Φ500mm |
| Foil Dereeler: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Winding Motor: | 11KW |
| Winding Shaft Size: | 80×80×1150 mm |
| Rotating Speed: | 0～20 Rpm |
| Insulation Dereeler: | 2 pcs |
| Maximum Insulation Material OD.: | 400mm |
| Insulation Material ID.: | Φ76mm |
| Insulation Dereeler Length: | 850mm |
| Counting Range: | 0 - 9999.9 |

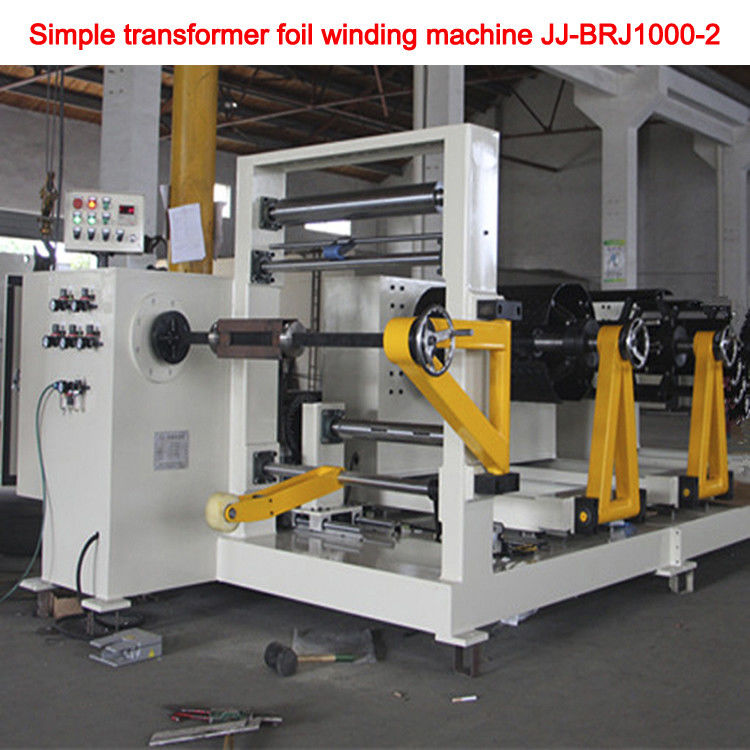

Fig 1: Transformer foil winding machine JJ-BRJ1000-2's front view
Fig 2: Transfomrer foil winding machine JJ-BRJ1000-2's side view
