Accurate Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter

Automatic Silicon Steel Core Slitting Machine Making Different Width Strip

Quick details of core slitting machine ZJX1250:

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Cutter 6 sets
• Feeding speed 120m/min
• Power 46kw
• One year warranty

Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a type of production processing equipment, which is mainly used to cut a coiled silicon steel sheet into silicon steel strips with a set width and the strips will be wound into coils. The slitting speed of the core slitting machine can be adjusted. The core cutting machine is with PLC control, and features high automation and easy operation etc.

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the slitting machine can also be manufactured as requested.

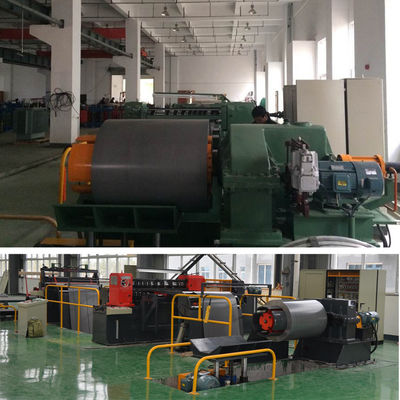

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
