Automatic Silicon Steel Strip Slitting Machine 500mm ID

Strip Slitting Machine Automatic Silicon Steel Core Slitting Machine

Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a professional strip slitting machine for slitting silicon steel coil to make different width of strips. These strips can be cut to make outer legs, center legs and VN yoke of transformer core. The slitting speed of the core slitting machine can be adjusted. Six sets of cutters are configured for the slitter, which can make five strips at once. However, the cutters can be added as requested for making more strips at once. With PLC based on control system, the core slitting machine can be operated easily.

Quick details of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Sheet width 500 ~ 1250 mm
• Sheet thickness 0.15 ~ 0.6mm
• 6 sets of cutters
• Feeding speed 120m/min
• Motor power 46kw

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

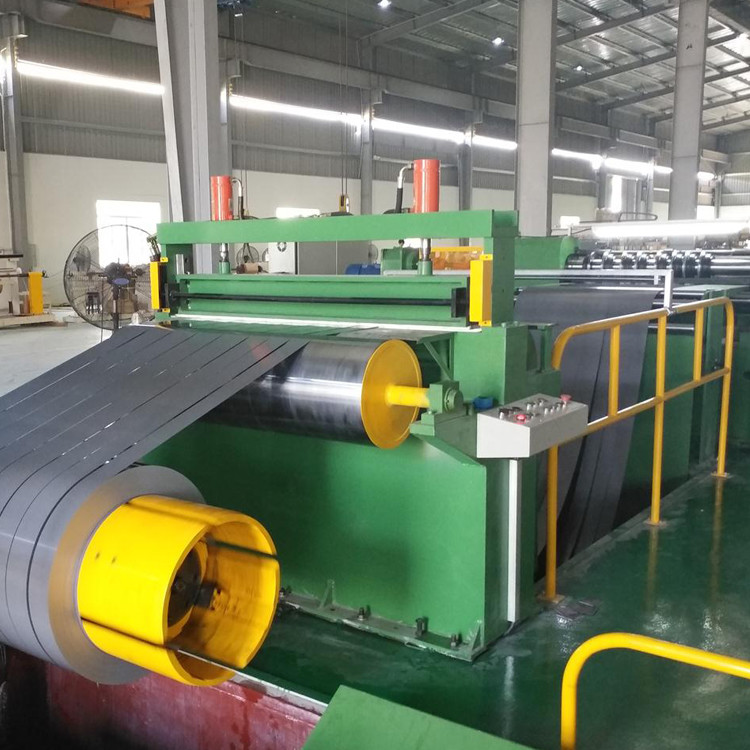

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
