Automatic Slitting Silicon Steel Sheet Core Slitting Machine

Automatic Slitting Silicon Steel Sheet Core Slitting Machine


Quick details of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Cutter 6 sets
• Feeding speed 120m/min
• Power 46kw
• One year warranty


Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a special slitter line, which is for slitting silicon steel sheet to make different widths of silicon steel strips. The slit strip can be cut to different length and shapes to make transformers’ core legs and yokes or other similar products. The core slitting machine is provided with 6 sets of cutters, which can make 5 pieces of strips at one time. However, if needing, cutters can be added to slit more strips at one time. With PLC control system, the slitting machine can be operated very easily.


Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console


Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.

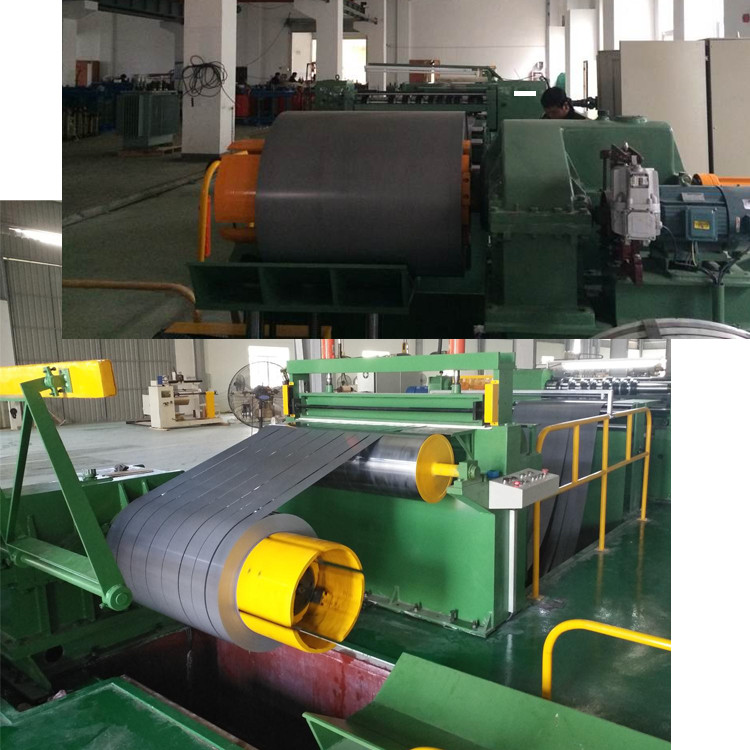

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
