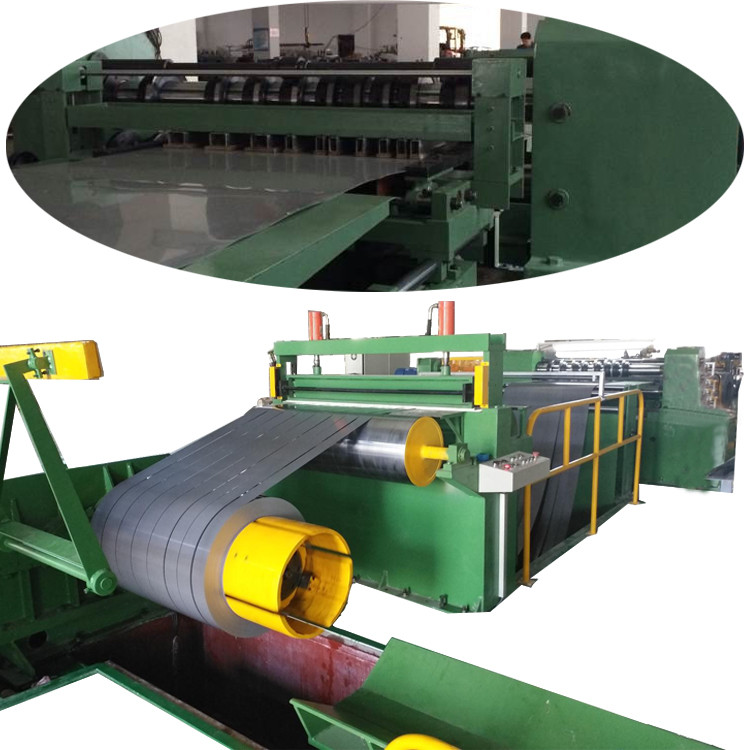

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitter

Automatic Steel Coil Slitter Machine Line Silicon Steel Core Slitting Machine

Description of core slitting machine ZJX1250

Silicon steel strip core slitting machine ZJX1250 is a special machine for cutting the silicon steel sheet into different width strip. The strip width can be preset. After cutting, the cut strip can be wound with tension, which can make the coil compacted. The maximum width of the material is 1250mm, and the minimum width of the cut strip is 40mm. The core slitting machine is widely used in many areas, including transformer making area.

Quick details of core slitting machine ZJX1250

• Decoiler expanding range: Ø470 ~ 520mm
• Strip roll material ID:500mm
• Strip material width 500 ~ 1250 mm
• Strip thickness 0.15 ~ 0.6mm
• 6 sets of cutters
• Feeding speed 120m/min
• Slit sheet width: 40-1250mm
• Motor power 46kw

Main parameters of transformer core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

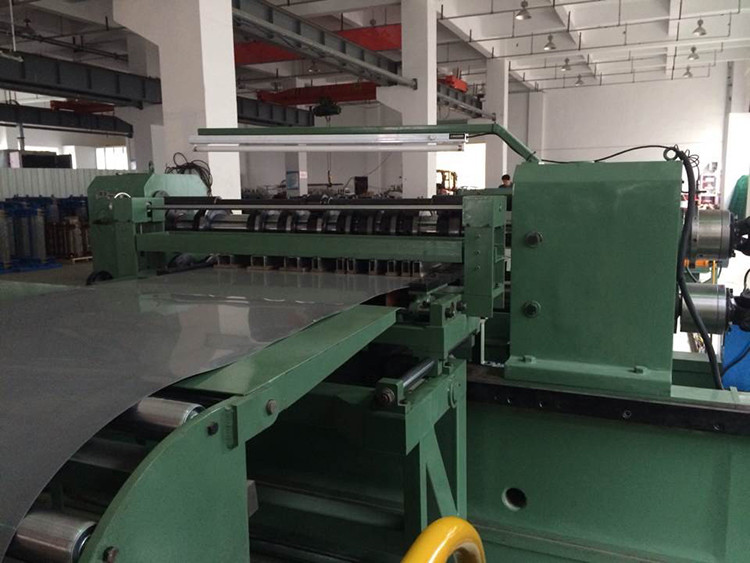

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
