Silicon Steel 1.5kw Transformer Core Stacking Table Hydraulic

Silicon Steel Core Assembly Platform Transformer Core Stacking Table

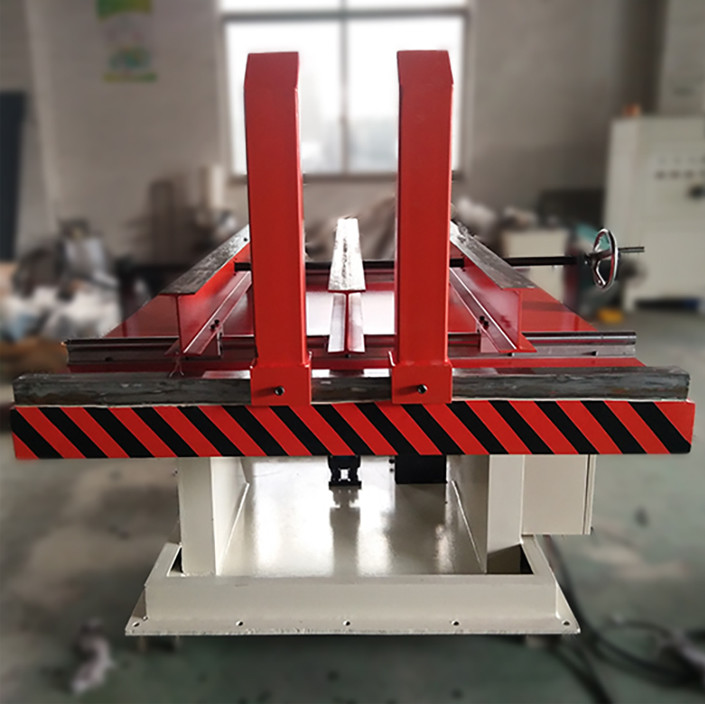

Description of transformer core stacking table FZT-3T

Transformer core stacking table FZT-3T is for stacking different sizes of transformer iron cores. The transformer core stacking table can tilt the stacked iron core up to 90° for taking the stacked core away from the table easily. The transformer core stacking table adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. Moreover, the transformer core stacking table is provided with a linear guide and a hydraulic system for tilting stacked cores. The transformer core stacking table features smooth tilting and easy to operate.

Quick details of transformer core stacking table FZT-3T

• Maximum loading 3000kgs
• Motor power 1.5kw
• Hydraulic station
• Table height from the floor 1000m
• Customized color
• One year warranty

Main parameters of transformer core stacking table FZT-3T

Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.
