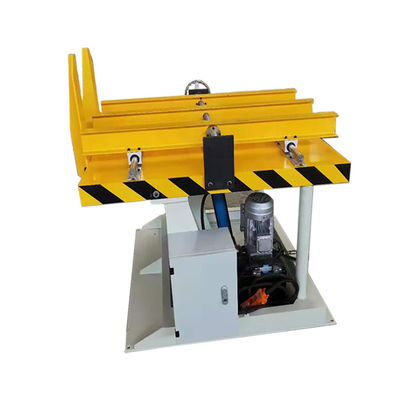

Stacking And Tilting Platform Transformer Iron Core Assembly Table

Stacking And Tilting Platform Transformer Iron Core Assembly Table

Stacking And Tilting Platform Transformer Iron Core Assembly Table
Stacking And Tilting Platform Transformer Iron Core Assembly Table

Large Image :  Stacking And Tilting Platform Transformer Iron Core Assembly Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Iron Core Assembly Table Table Height: 1000mm
Power: 1.5kw Stacking Height: 400mm
Color: Customized Warranty: 12 Months
High Light:

400mm Transformer Iron Core Assembly Table

,

1000mm Stacking And Tilting Platform

,

1.5kw Transformer Iron Core Assembly Table

Stacking And Tilting Platform Transformer Iron Core Assembly Table





Quick Detail:



  • Maximum capacity 1000kgs
  • Main power 1.5kw
  • Hydraulic
  • Table height 1000m
  • One year warranty





Description



Stacking And Tilting Platform Transformer Iron Core Assembly Table FZT-1T is a special equipment to stack different sizes of transformer iron cores and it can tilt the stacked iron cores up to 90°. The equipment adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. Furthermore, it is provided with a linear guide and a hydraulic system for tilting stacked cores. The equipment features smooth tilting and easy to operate, which assures the quality of laminating iron cores and improves the production efficiency.





Main Components



1. Main frame

2. Hydraulic station

3. Linear guide





Main Parameters



Typical standard specifications of FZT-1T are shown below, however these can be easily modified as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable
