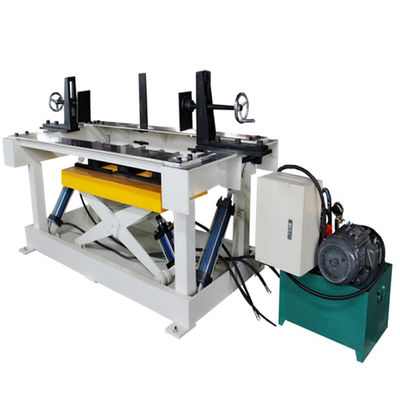

Hydraulic Driving Transformer Amorphous Core Stacking Table Assembly Platform

Hydraulic Driving Transformer Amorphous Core Stacking Table Assembly Platform

Hydraulic Driving Transformer Amorphous Core Stacking Table Assembly Platform
Hydraulic Driving Transformer Amorphous Core Stacking Table Assembly Platform
video play

Large Image :  Hydraulic Driving Transformer Amorphous Core Stacking Table Assembly Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Assembly Armorphous Iron Core
Capacity: 3000kg Stoke: 300mm
Motor Power: 2.2kw Color: Optional
High Light:

300mm Amorphous Core Stacking Table

,

2.2kw assembly platform

,

3000kg Amorphous Core Stacking Table

Hydraulic Driving Amorphous Transformer Core Stacking Table Assembly Platform





Description of transformer core stacking table ZPT-3T



Automatic amorphous transformer iron core stacking table and assembly platform ZPX-3T is a professional equipment to assemble the amorphous alloy iron core transformer. The transformer core stacking table can be used to assembly all kinds of oil immersed type and dry-type amorphous transformers. Placing a coil on the lifting platform of the transformer core stacking table, making the axis of the coil horizontal, inserting every single frame iron core into the inner hole of the coil, wrapping, mounting insulator, and clamping processes, etc to complete folding iron cores. The height of the transformer core stacking table’s working position can be easily adjusted to meet different assembly needs.





Quick details of transformer core stacking table



  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 3000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa





Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however these can be easily modified as requested.

No. Item ZPT-3T
1 Working height 850mm
2 Applicable Product Size

L:700-1600mm

W:360-700mm

H:400-900

3 Lifting Platform Capacity (rated) 3000Kg
4 Lifting Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Total Power 2.2Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa
