Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table

Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table

Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table
Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table
video play

Large Image :  Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Table Name: Transformer Core Stacking Table Application: Assembly Armorphous Iron Core
Max. Capacity: 3000kg Maximum Stoke: 300mm
Motor Power: 2.2kw Color: Optional
Tilting: Hydraulic Warranty: 12 Months
High Light:

Amorphous Transformer Core Stacking Table

,

2.2kw Adjustable Stacking Table

,

3000kg Transformer Core Stacking Table

Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table





Description of transformer core stacking table ZPT-3T



Transformer core stacking table, also called lap core adjustable stacking table ZPT-3T is for assembling the amorphous alloy transformer iron core. The stacking table changes the traditional assembly processes. Operators just need put a coil on the lifting table of the machine, make the axis of the coil horizontal, and insert every single frame iron core into the inner hole of the coil to finish folding iron cores, wrapping, mounting insulator, and clamping processes, etc. The height of the table working position can be easily adjusted to meet different assembly needs.





Quick details of transformer core stacking table ZPT-3T



  • Working height from floor 850mm
  • Hydraulic station for tilting
  • Linear guide
  • Maximum capacity 3000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table ZPT-3T



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however, the transformer core stacking table can also be manufactured as requested.

No. Item ZPT-3T
1 Working height 850mm
2 Applicable Core Size

L:700-1600mm

W:360-700mm

H:400-900

3 Platform Capacity 3000Kg
4 Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Total Power 2.2Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotated Tilting Angle 90°
10 Hydraulic Pressure 21MPa maximum



Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 0

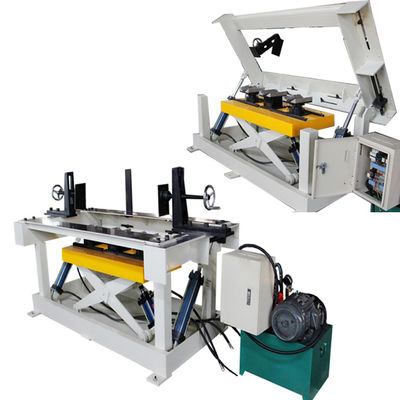

Fig 1: Transformer core stacking table ZPT-3T's full view



Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 1

Fig 2: Transformer core stacking table ZPT-3T's tilting



Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 2Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 3Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 4Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 5Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 6Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 7Amorphous Transformer Core Stacking Table Lap Core Adjustable Stacking Table 8
