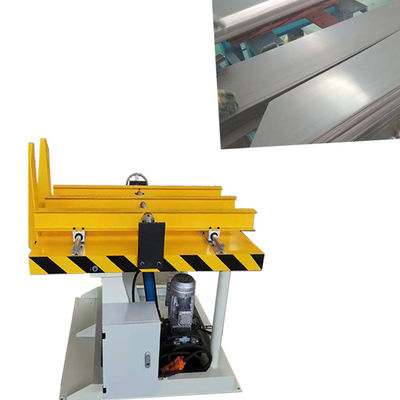

Transformer Iron Core Stacking Table Hydraulic Driven Tilting Platform

Transformer Iron Core Stacking Table Hydraulic Driven Tilting Platform

Transformer Iron Core Stacking Table Hydraulic Driven Tilting Platform
Transformer Iron Core Stacking Table Hydraulic Driven Tilting Platform

Large Image :  Transformer Iron Core Stacking Table Hydraulic Driven Tilting Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Table Name: Transformer Iron Core Stacking Table Platform Height: 1000mm
Motor Power: 1.5kw Stacking Height: 400mm
Table Color: Customized Warranty: 12 Months
Driving: Hydraulic Tilting: Maximum 90 Degree
High Light:

1000mm Transformer Iron Core Stacking Table

,

1.5kw Hydraulic Driven Tilting Platform

,

400mm Iron Core Stacking Table

Transformer Core Stacking Table Hydraulic Driven Tilting Platform





Description of transformer core stacking table FZT-1T



Transformer iron core stacking table FZT-1T is a professional device for stacking iron core to make transformer core. After stacking iron core, the table can tilt the platform with stacked iron core for taking it away from the platform easily with tilting up to 90°. With an adjustable mode, the iron core stacking table improves the accuracy of tilting and speed regulation. The iron core stacking table features easy operation, running smoothly and so on.





Quick details of transformer core stacking table FZT-1T



  • Maximum capacity 1000kgs
  • Motor power 1.5kw
  • Hydraulic driven
  • Table height from the floor 1000m
  • Customized color
  • One year warranty



Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of FZT-1T are shown below, however these can be easily modified as requested.

Platform Size: 1300×1000mm
Maximum Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height from Floor: 1000mm
Driven Way: Hydraulic
Motor Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable
