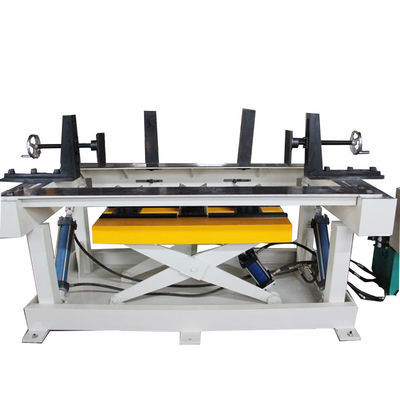

Automatic Amorphous Transformer Core Stacking Table Assembly Platform

Automatic Amorphous Transformer Core Stacking Table Assembly Platform

Automatic Amorphous Transformer Core Stacking Table Assembly Platform
Automatic Amorphous Transformer Core Stacking Table Assembly Platform
video play

Large Image :  Automatic Amorphous Transformer Core Stacking Table Assembly Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Iron Core Stacking And Tilting Table Usage: Assemble Armophous Transformer Core
Tabel Height: 850mm Platform Size: 700x1600mm
Tilting Power: Hydraulic Motor Power: 2.2kw
Color: As Requested Warranty Time: 12 Months
High Light:

Automatic Transformer Core Stacking Table

,

Amorphous assembly platform

,

700x1600mm Transformer Core Stacking Table

Automatic Amorphous Transformer Core Stacking Table Assembly Platform





Description of transformer core stacking table ZPT-3T

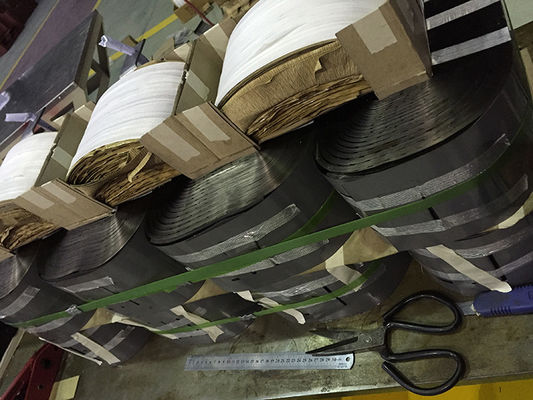

Automatic amorphous transformer core stacking table ZPX-3T is a special machine to assemble the amorphous alloy iron core for making transformer. The transformer core stacking table can be used to assemble many kinds of oil immersed type and dry-type amorphous transformers. There are three fixing blocks for placing the coils on them. The side blocks can be lifted. One hydraulic station provides power for the transformer core stacking table to tilt the stacked core.





Quick details of transformer core stacking table



  • Platform height 850mm
  • Hydraulic station providing power for tilting
  • Linear guide
  • Maximum capacity 3000kg
  • Power 2.2kw
  • Hydraulic pressure 21MPa





Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however these can be easily modified as requested.

No. Item ZPT-3T
1 Working height from floor 850mm
2 Finished Core Size

L:700-1600mm

W:360-700mm

H:400-900

3 Platform Capacity 3000Kg
4 Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Motor Power 2.2Kw
8 Table Weight 1500Kg
8 Applicable Transformer 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa
