| Product Name: | Transformer Core Stacking Table | Application: | Stacking And Tilting Core |
|---|---|---|---|
| Table Size: | 2000x1600mm | Table Height: | 1000mm |
| Max. Loading: | 5000kg | Driving Mode: | Hydraulic |
| Cylinder: | Hydraulic Driving | Warranty: | 12 Months |
| Highlight: | 2000x1600mm Transformer Core Stacking Table,Hydraulic Driven Tilting Assembly Platform,5000kg Transformer Core Stacking Table |
||

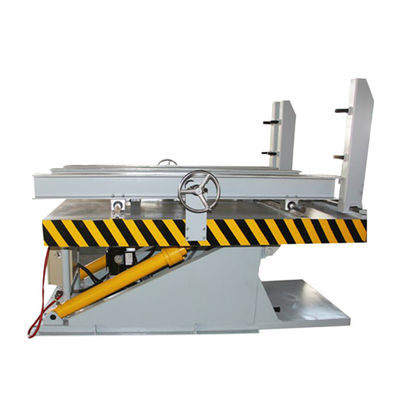

Hydraulic Driven Tilting Assembly Platform Transformer Core Stacking Table
Description of transformer core stacking table FZT-5T
Transformer core stacking table FZT-5T is used for stacking and tilting transformer iron core. The transformer core stacking table is suitable for stacking and tilting large and medium transformer iron core. The transformer core stacking table adopts a hydraulic station for driving the table to tilt for taking away the stacked iron core easily. The speed of the tilting can be adjusted.
Quick details of transformer core stacking table
Main Components of transformer core stacking table
Main Parameters of transformer core stacking table
Typical standard specifications of transformer core stacking table FZT-5T are shown below, however these can be easily modified as requested.
| No. | Item | FZT-5T |
| 1 | Table Size(LxW): | 2000×1600mm |
| 2 | Table Height: | 1000mm |
| 3 | Max. Capacity: | 5000Kg |
| 4 | Max. Stacking Thickness: | 900mm |
| 5 | Tilting Mode: | Hydraulic |
| 6 | Tilting Speed: | 90°/Min(Stepless speed regulating) |
| 7 | Distance Between Columns: | Adjustable |
| 8 | Main Power: | 3KW |
| 9 | Warranty: | 12 months |
