Description of transformer core stacking table ZPT-5T

Heavy duty transformer core stacking table ZPX-5T is a special equipment to assemble the amorphous alloy iron core transformer. The transformer core stacking table can be used to stack the iron core and tilting the stacked core. Putting a coil on the lifting platform of the transformer core stacking table, making the axis of the coil horizontal, inserting every single frame iron core into the inner hole of the coil, wrapping, mounting insulator, and clamping processes, etc to complete folding iron cores. The height of the transformer core stacking table’s working position can be easily adjusted to meet different assembly needs.

Quick details of transformer core stacking table ZPT-5T

• Working height 850mm
• Hydraulic station 1 piece
• Linear guide
• Maximum capacity 5000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-5T

Typical standard specifications of transformer core stacking table ZPT-5T are shown below, however, the stacking table can also be manufactured as requested.

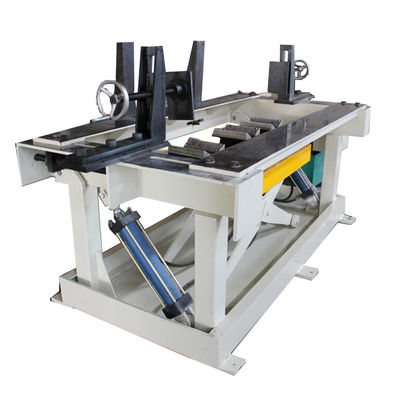

Fig 1: Transformer core stacking table ZPT-5T's full view

Fig 2: Transformer core stacking table ZPT​-5T's tilting
