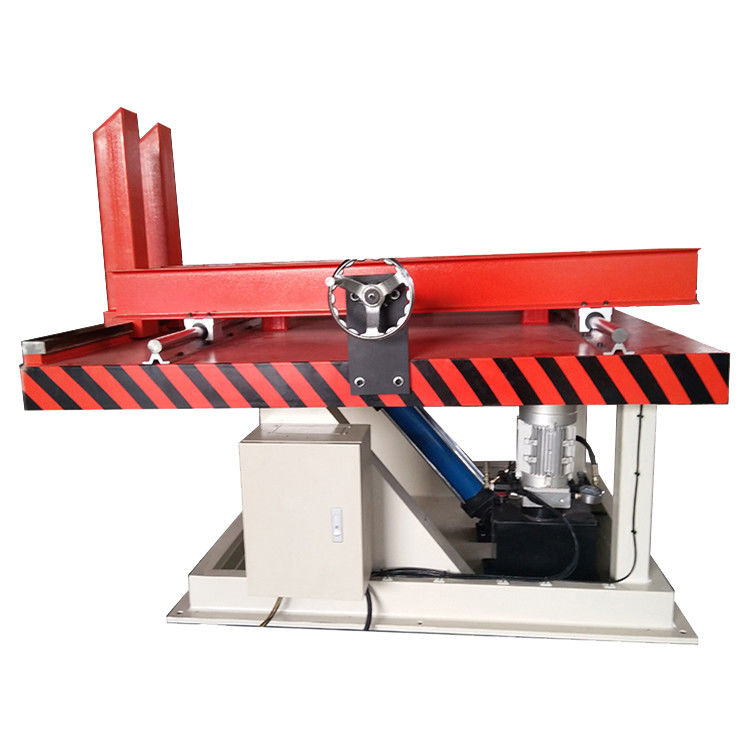

Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function

Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function

Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function
Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function

Large Image :  Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Function: Stacking And Tilting Core
Table Size: 1600x1400mm Table Height: 1000mm
Max. Capacity: 3000kg Driving Mode: Hydraulic
Color: As Requested Warranty: 12 Months
High Light:

Automatic Transformer Core Stacking Table

,

hydraulic tilting table 1600x1400mm

,

3000kg Transformer Core Stacking Table

Automatic Hydraulic Driven Transformer Core Stacking Table Tilting Function





Description of transformer core stacking table FZT-3T



Automatic hydraulic FZT-3T is mainly used to stack transformer iron core. After the core stacked, the table can tilt up the stacked core to 90° for taking away the stacked iron core easily. The transformer core stacking table adopts hydraulic driving for tilting and the tilting speed can be adjusted. The transformer core stacking table features easy operation, tilting smoothly and so on.





Quick details of transformer core stacking table



  • The table size:1600x1400mm
  • Table height:1000mm
  • Power: 1.5kw
  • Color: optional





Main Components of transformer core stacking table



  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel





Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height: 1000mm
3 Max. Capacity: 3000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 1.5KW
9 Warranty: 12 months
