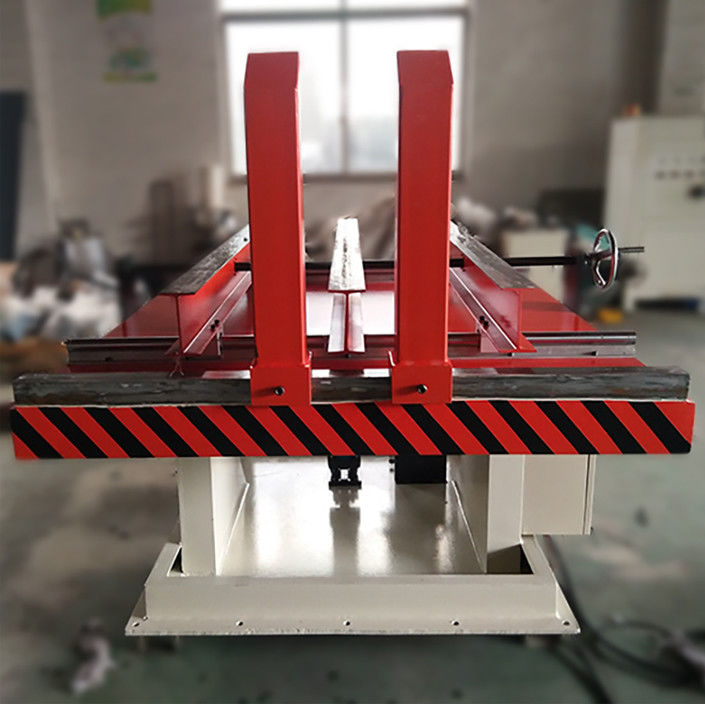

Silicon Steel 1.5kw Transformer Core Stacking Table Hydraulic

Silicon Steel 1.5kw Transformer Core Stacking Table Hydraulic

Silicon Steel 1.5kw Transformer Core Stacking Table Hydraulic
Silicon Steel 1.5kw Transformer Core Stacking Table Hydraulic

Large Image :  Silicon Steel 1.5kw Transformer Core Stacking Table Hydraulic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Application: Stacking And Tilting Core
Table Size: 1600x1400mm Table Height: 1000mm
Max. Loading: 3000kg Tilting Mode: Hydraulic
Color: As Requested Warranty: 12 Months
High Light:

Silicon Steel Transformer Core Stacking Table

,

1.5kw Transformer Core Stacking Table

,

Hydraulic Transformer Core Stacking Table

Silicon Steel Core Assembly Platform Transformer Core Stacking Table





Description of transformer core stacking table FZT-3T



Transformer core stacking table FZT-3T is for stacking different sizes of transformer iron cores. The transformer core stacking table can tilt the stacked iron core up to 90° for taking the stacked core away from the table easily. The transformer core stacking table adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. Moreover, the transformer core stacking table is provided with a linear guide and a hydraulic system for tilting stacked cores. The transformer core stacking table features smooth tilting and easy to operate.





Quick details of transformer core stacking table FZT-3T

  • Maximum loading 3000kgs
  • Motor power 1.5kw
  • Hydraulic station
  • Table height from the floor 1000m
  • Customized color
  • One year warranty



Main parameters of transformer core stacking table FZT-3T



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.

No. Item FZT-3T
1 Working Platform Size(LxW): 1600×1400mm
2 Platform Height: 1000mm
3 Maximum Loading: 3000Kg
4 Maximum Stacked Core Thickness: 900mm
5 Tilting Power: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Motor Power: 1.5KW
9 Warranty: 12 months
