Silicon Steel Coil Slitting Line Automatic Core Slitting Machine Easy Operated

Easy Operated Silicon Steel Coil Slitting Line Automatic Core Slitting Machine

Description of core slitting machine ZJX1250

The core slitting machine ZJX1250 is a special equipment for making strips from a big coil. The core slitting machine is also called vertical slitting line, which is mainly used to slit silicone steel coil and other similar material into strip with different widths. The slit metal strips are wound at the end of the slitting machine and the slit strips can be used in transformers, motors and other similar products. The slit strip width can be preset and the slit strip can be wound into coils. The maximum width of the silicon steel material is 1250mm, and the minimum width of the slit strip is 40mm. The core slitting machine is widely used in many areas, including transformer making area.

Quick details of core slitting machine ZJX1250

• Decoiler expanding range: Ø470 ~ 520mm
• Strip roll material ID:500mm
• Strip material width 500 ~ 1250 mm
• Strip thickness 0.15 ~ 0.6mm
• 6 sets of cutters
• Feeding speed 120m/min
• Slit sheet width: 40-1250mm
• Motor power 46kw

Main parameters of transformer core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however these can be easily modified as requested.

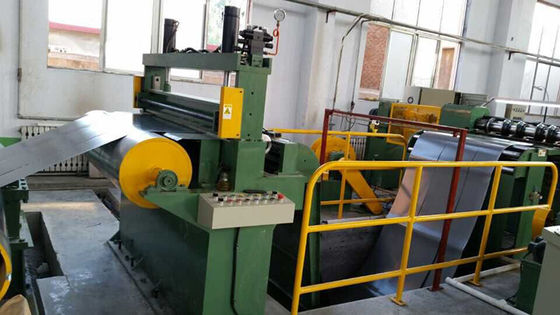

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
