500mm Core Slitting Machine High Automation And Easy Operation Slitter

High Automation And Easy Operation Slitter Core Slitting Machine

Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a special cutter for cutting silicon steel sheet to make different sizes of strips. The slitter can wind the strip after slitting the sheet. The slit strips can be used to make transformer cores’ outer legs, center legs, up yokes and down yokes etc after being cut different shapes according to different specifications. The slitting speed of the core slitting machine can be adjusted. The core slitting machine is usually provided with six sets of cutter and can slit five strips at once. After adding more cutters, the slitter can slit more strips at once. The core slitting machine features high automation, easy operation and so on.

Quick details of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Sheet width 500 ~ 1250 mm
• Sheet thickness 0.15 ~ 0.6mm
• 6 sets of cutters
• Feeding speed 120m/min
• Motor power 46kw

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

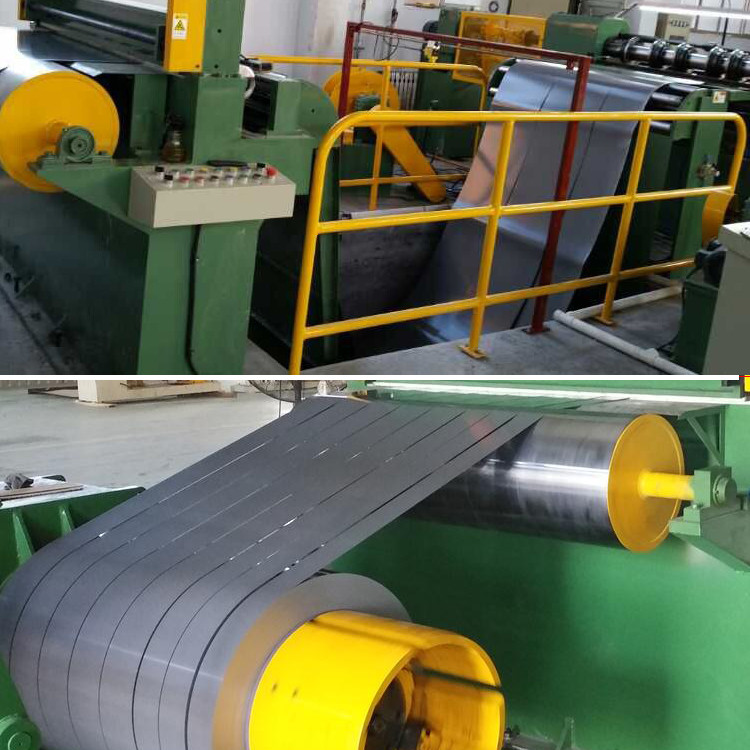

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
