500mm Core Slitting Machine High Automation And Easy Operation Slitter

500mm Core Slitting Machine High Automation And Easy Operation Slitter

500mm Core Slitting Machine High Automation And Easy Operation Slitter
500mm Core Slitting Machine High Automation And Easy Operation Slitter

Large Image :  500mm Core Slitting Machine High Automation And Easy Operation Slitter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Sheet Slitter Usage: Slit Silicon Steel Sheet
Roll Outer Diameter: Ø1200mm, Maximum Roll Inner Diameter: Ø500mm
Slitting Thickness: 0.15 ~ 0.6mm Slitting Width: 500 ~ 1250mm
Color: As Requested Warranty Period: 12 Months
Slitting Accuracy: ±0.1mm Material: Silicon Steel Sheet
High Light:

Automation Core Slitting Machine

,

Silicon Steel Sheet Slitter 120m/min

,

500mm Core Slitting Machine

High Automation And Easy Operation Slitter Core Slitting Machine



Description of core slitting machine ZJX1250



Core slitting machine ZJX1250 is a special cutter for cutting silicon steel sheet to make different sizes of strips. The slitter can wind the strip after slitting the sheet. The slit strips can be used to make transformer cores’ outer legs, center legs, up yokes and down yokes etc after being cut different shapes according to different specifications. The slitting speed of the core slitting machine can be adjusted. The core slitting machine is usually provided with six sets of cutter and can slit five strips at once. After adding more cutters, the slitter can slit more strips at once. The core slitting machine features high automation, easy operation and so on.





Quick details of core slitting machine ZJX1250



  • Decoiler expanding range Ø470 ~ 520mm
  • Sheet width 500 ~ 1250 mm
  • Sheet thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Motor power 46kw



Main components of core slitting machine ZJX1250



1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console





Main parameters of core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

Decoiler expanding range: Ø470 ~ 520mm
Coil ID: Ø495 ~ 510mm
Maximum coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 ~ 1250 mm
Cutting thickness: 0.15 ~ 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Feeding speed: 120 m/min
Cutting burring: ≤0.02 mm
Power: 46 kw


500mm Core Slitting Machine High Automation And Easy Operation Slitter 0

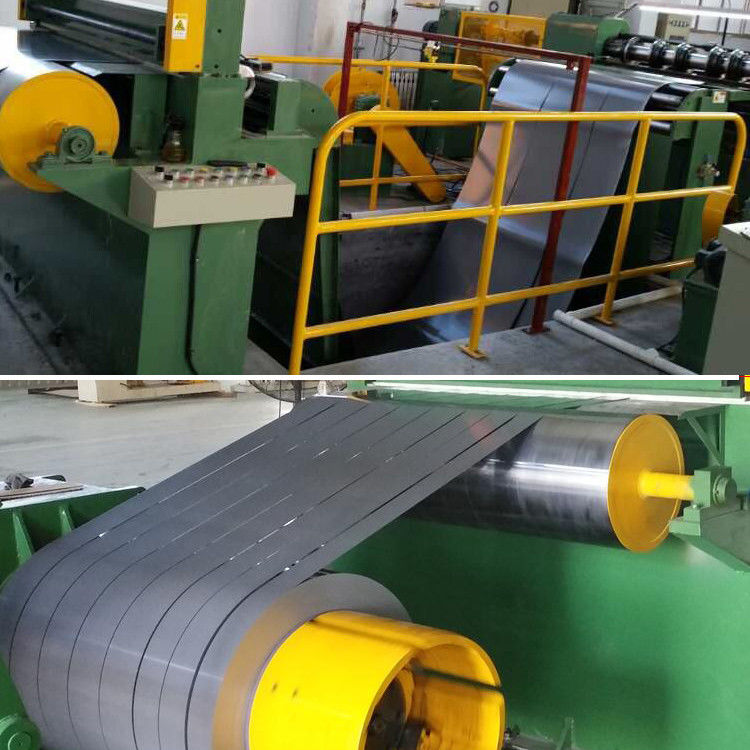

Fig 1: Core slitting machine ZJX1250's front view

500mm Core Slitting Machine High Automation And Easy Operation Slitter 1
Fig 2: Core slitting machine ZJX1250's winder

500mm Core Slitting Machine High Automation And Easy Operation Slitter 2
500mm Core Slitting Machine High Automation And Easy Operation Slitter 3
500mm Core Slitting Machine High Automation And Easy Operation Slitter 4

500mm Core Slitting Machine High Automation And Easy Operation Slitter 5
500mm Core Slitting Machine High Automation And Easy Operation Slitter 6
500mm Core Slitting Machine High Automation And Easy Operation Slitter 7
500mm Core Slitting Machine High Automation And Easy Operation Slitter 8
