Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm

Factory Direct Sales Transformer Core Stacking And Tilting Table


Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a special stacking table for stacking silicon steel sheet, which can make transformer cores. The transformer core stacking table is with a function of tilting stacked cores, which can take the stacked core from the table easily. The transformer core stacking table is provided with a hydraulic station to drive the table to tilt the stacked core. With a hand held controller, it is very easy to operate the transformer core stacking table.


Quick details of transformer core stacking table FZT-5T

• Platform size:2000x1600mm
• Platform height from the floor:1000mm
• Maximum capacity:5000kg
• Maximum thickness of stacking: 600mm
• Power: 3kw
• Color: optional


Main Components of transformer core stacking table FZT-5T

• Main frame
• Hydraulic station
• Linear guide
• Control panel
• Cylinder
• Motor


Main Parameters of transformer core stacking table FZT-5T

Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.

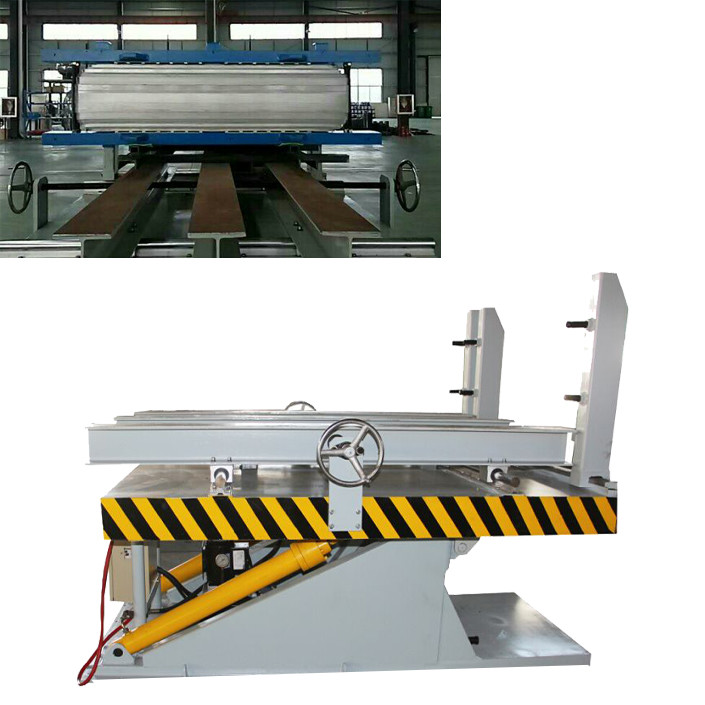

Fig 1: Transformer core stacking table FZT-5T's full view


Fig 2: Transformer core stacking table FZT-5T's tilting stacked core
