Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm

Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm

Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm
Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm

Large Image :  Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Usage: Stacking And Tilting Core
Platform Size: 2000x1600mm Platform Height: 1000mm
Max. Loading: 5000kg Driving: Hydraulic
Motor Power: 3kw Warranty: 1 Year
High Light:

3kw Transformer Core Stacking Table

,

Hydraulic Transformer Core Stacking Tilting Table

Factory Direct Sales Transformer Core Stacking And Tilting Table


Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a special stacking table for stacking silicon steel sheet, which can make transformer cores. The transformer core stacking table is with a function of tilting stacked cores, which can take the stacked core from the table easily. The transformer core stacking table is provided with a hydraulic station to drive the table to tilt the stacked core. With a hand held controller, it is very easy to operate the transformer core stacking table.


Quick details of transformer core stacking table FZT-5T

  • Platform size:2000x1600mm
  • Platform height from the floor:1000mm
  • Maximum capacity:5000kg
  • Maximum thickness of stacking: 600mm
  • Power: 3kw
  • Color: optional


Main Components of transformer core stacking table FZT-5T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel
  • Cylinder
  • Motor


Main Parameters of transformer core stacking table FZT-5T

Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.

No.ItemFZT-5T
1Table Size(LxW):2000×1600mm
2Table Height:1000mm
3Max. Capacity:5000Kg
4Max. Stacking Thickness:900mm
5Tilting Mode:Hydraulic
6Tilting Speed:90°/Min(Stepless speed regulating)
7Distance Between Columns:Adjustable
8Main Power:3KW
9Warranty:12 months


Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 0

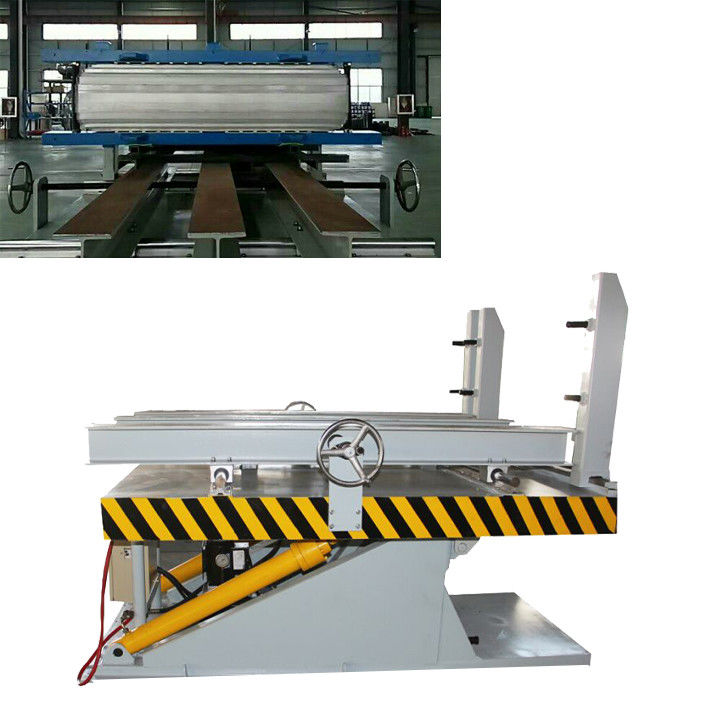

Fig 1: Transformer core stacking table FZT-5T's full view

Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 1
Fig 2: Transformer core stacking table FZT-5T's tilting stacked core

Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 2

Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 3
Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 4Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 5Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 6
Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 7Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 8
Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 9Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 10Hydraulic Transformer Core Stacking And Tilting Table 2000x1600mm 11
