Amorphous Transformer Core Stacking Table With Tilting Function

Amorphous Transformer Core Stacking Table With Tilting Function

Amorphous Transformer Core Stacking Table With Tilting Function
Amorphous Transformer Core Stacking Table With Tilting Function
video play

Large Image :  Amorphous Transformer Core Stacking Table With Tilting Function Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Usage: Stacking Silicon Steel Sheet
Platform Height: 850mm Loading Capacity: 1000kg
Platform Stroke: 500mm Warranty: 12 Months
Motor Power: 1.5kw Weight: 1500kg
High Light:

Transformer Core Stacking Table Amorphous

,

Tilting Transformer Core Stacking Table

Amorphous Transformer Core Stacking Table With Tilting Function





Description of transformer core stacking table ZPT-1T



Amorphous transformer iron core stacking table ZPT-1T is a professional equipment to laminate the amorphous alloy iron for making amorphous transformer core. The transformer core stacking table can be used to assembly all kinds of oil immersed type and dry-type amorphous transformer cores. The height of the transformer core stacking table’s working position can be easily adjusted to meet different assembly needs. The transformer core stacking table is provided with two hydraulic cylinders to provide big force to tilt the table, which can make the stacked core be taken away from the table easily. It is very easy to operate the transformer core stacking table.





Quick details of transformer core stacking table ZPT-1T



  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 1000kg
  • Motor power 1.5kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-1T are shown below, however these can be easily modified as requested.

No. Item ZPT-1T
1 Working height 850mm
2 Applicable Product Size

L:700-1600mm

W:360-700mm

H:400-900

3 Lifting Platform Capacity 1000Kg
4 Lifting Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Total Power 1.5Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa



Amorphous Transformer Core Stacking Table With Tilting Function 0

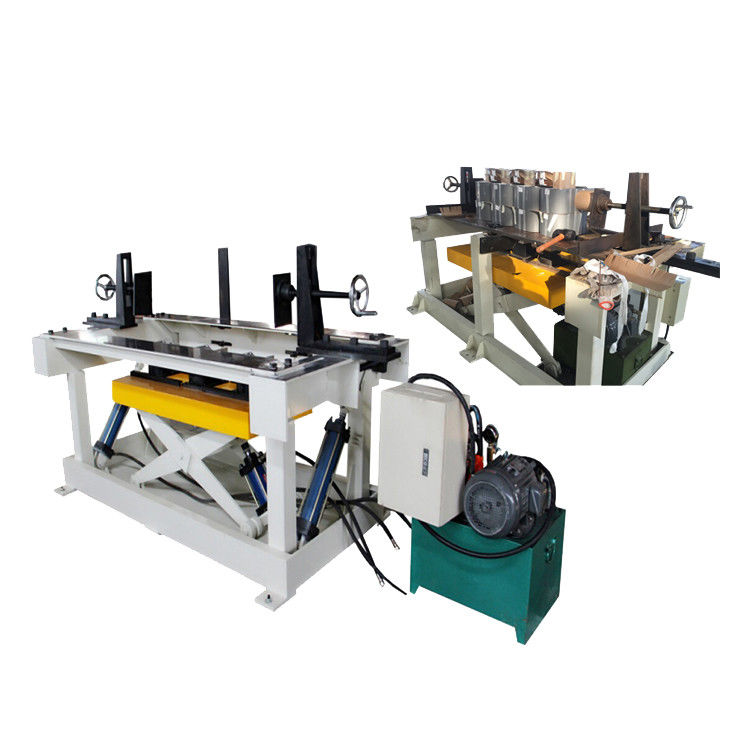

Fig 1:Transformer core stacking table ZPT-1T's full view



Amorphous Transformer Core Stacking Table With Tilting Function 1

Fig 2: Transformer core stacking table ZPT-1T's tilting



Amorphous Transformer Core Stacking Table With Tilting Function 2Amorphous Transformer Core Stacking Table With Tilting Function 3Amorphous Transformer Core Stacking Table With Tilting Function 4Amorphous Transformer Core Stacking Table With Tilting Function 5Amorphous Transformer Core Stacking Table With Tilting Function 6Amorphous Transformer Core Stacking Table With Tilting Function 7Amorphous Transformer Core Stacking Table With Tilting Function 8
