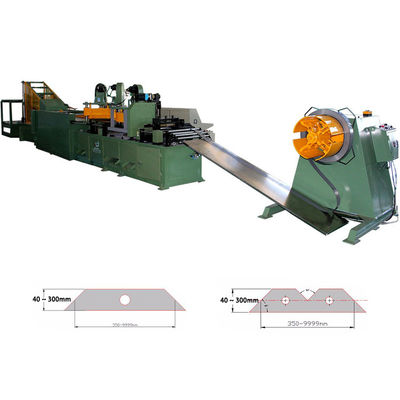

Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core

Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core

Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core
Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core

Large Image :  Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX300-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Cut To Length Line Cutting Mode: Regular
Sheet Thickness: 0.23 ~ 0.35mm Sheet Width: 40 ~ 300mm
Cutting Speed: 120m/min Warranty Period: 12 Months
Cutting Burring: Less Than 0.02mm Power: 11kw
High Light:

Transformer Core Machine Silicon Steel

,

Transformer Core Cut To Length Line

,

120m/min Transformer Core Machine

Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core





Description of transformer core cutting machine HJX300-LL



Transformer core cutting machine HJX300-LL is a special cutter for cutting silicon steel sheet and the cut silicon steel sheet can be used to make transformer iron cores and other similar products. The silicon steel sheets with maximum width 300mm can be cut with this transformer core cutting machine. Moreover, the transformer core cutting machine can cut beveled edges at both ends of silicon steel and punch the silicon steel sheet to make two holes and a V-notch on the silicon steel sheet. With the control system based on PLC, the transformer core cutting machine can be operated easily. The cuttering machine can cut the silicon steel sheet according to the parameters preset. The transformer core cutting machine features easy operation and smooth running etc.





Quick details of transformer core cutting machine HJX300-LL



  • Silicon steel sheet thickness 0.2 ~ 0.35mm
  • Silicon steel sheet width 40 ~ 300mm
  • Feeding speed 120m/min
  • Motor power 11kw
  • Color as requested
  • 12 months warranty period



Main parameters of transformer core cutting machine HJX300-LL



The standard specifications of transformer core cutting machine HJX300-LL is shown below, however, the cutting machine can also be manufactured as requested.

Item HJX300-LL
Sheet thickness 0.2 ~ 0.35 mm
Sheet width 40 ~ 300 mm
Cutting length 350 ~ 9999 mm
Feeding speed 120 m/min
Cutting angle accuracy ±0.025°
Cutting length accuracy ±0.1 mm
Cutting burring ≤0.02 mm
Total power 11 kw



Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 0

Fig 1: Transformer core cutting machine HJX300-LLB's side view



Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 1

Fig 2: Transformer core cutting machine HJX300-LLB's dereeler



Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 2

Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 3Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 4Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 5

Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 6Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 7Transformer Core Cutting Machine Cutting Silicon Steel To Make Transformer Core 8
