Automatic Transformer Core Cutting Machine 120m/Min For Making Core

Automatic Transformer Core Cutting Machine 120m/Min For Making Core

Automatic Transformer Core Cutting Machine 120m/Min For Making Core
Automatic Transformer Core Cutting Machine 120m/Min For Making Core

Large Image :  Automatic Transformer Core Cutting Machine 120m/Min For Making Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX300-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Cutting Machine Cutting Width: 40 ~ 300mm
Cutting Thickness: 0.23 ~ 0.35mm Cutting Length: 350 ~ 9999mm
Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty: 12 Months
High Light:

11kw Transformer Core Cutting Machine

,

Transformer Core Cutting Machine 120m/min

,

Silicon Steel Transformer Core Cutting Machine

Automatic Cut To Length Transformer Core Cutting Machine For Making Core





Description of transformer core cutting machine HJX300-LL



Automatic cut to length transformer core cutting machine HJX300-LL is for cutting silicon steel to making transformer core or other similar products. The transformer core cutting machine can cut the the silicon steel with maximum width 300mm. The transformer core cutting machine can cut beveled edges at both ends and punch the silicon steel to make two holes and a V-notch on the silicon steel. With PLC control system, the transformer core cutting machine can cut the silicon steel according to the parameters preset. It is very easy to operate the transformer core cutting machine.





Quick details of transformer core cutting machine HJX300-LL

  • Silicon steel thickness 0.2 ~ 0.35mm
  • Silicon steel width 40 ~ 300mm
  • Feeding steel speed 120m/min
  • Motor power 11kw
  • Color as requested
  • 12 months warranty



Main parameters of transformer core cutting machine HJX300-LL



The standard specifications of transformer core cutting machine HJX300-LL is shown below, however, the cutting machinen can also be manufactured as requested.

Technical Specifications HJX300-LL
Sheet thickness 0.2-0.35 mm
Sheet width 40-300 mm
Cutting length 350-9999 mm
Feeding speed 120 m/min
Cutting angle accuracy ±0.025°
Cutting length accuracy ±0.1 mm
Cutting burring ≤0.02 mm
Total power 11 kw



Automatic Transformer Core Cutting Machine 120m/Min For Making Core 0

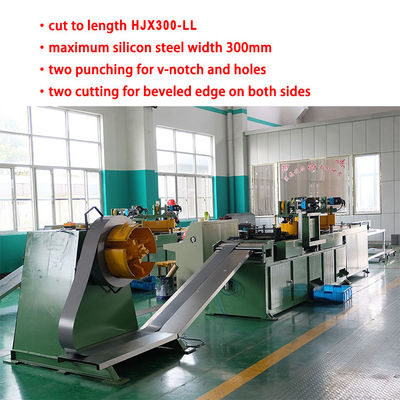

Fig 1: Transformer core cutting machine HJX300-LL's full view



Automatic Transformer Core Cutting Machine 120m/Min For Making Core 1

Fig 2: Transformer core cutting machine HJX300-LL's side view

Automatic Transformer Core Cutting Machine 120m/Min For Making Core 2Automatic Transformer Core Cutting Machine 120m/Min For Making Core 3

Automatic Transformer Core Cutting Machine 120m/Min For Making Core 4Automatic Transformer Core Cutting Machine 120m/Min For Making Core 5

Automatic Transformer Core Cutting Machine 120m/Min For Making Core 6Automatic Transformer Core Cutting Machine 120m/Min For Making Core 7Automatic Transformer Core Cutting Machine 120m/Min For Making Core 8Automatic Transformer Core Cutting Machine 120m/Min For Making Core 9Automatic Transformer Core Cutting Machine 120m/Min For Making Core 10
