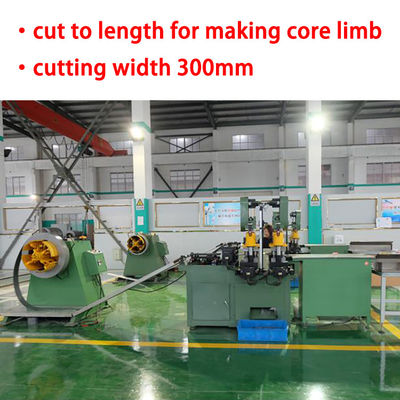

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb
CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb

Large Image :  CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZZ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Core Cutting Machine Application: Cutting Silicon Steel
Cutting Width: 40 ~ 300mm Cutting Length: 150-2500mm
Cuttin Peed: 180m/min Power: 14kw
Color: As Requested Warranty: 12 Months
High Light:

180m/min Transformer Core Cutting Machine

,

Transformer Core Cutting Machine 14kw

,

CRGO Transformer Core Cutting Machine

CRGO Silicon Steel Cutter Transformer Core Cutting Machine For Making Core Limb



Description of transformer core cutting machine ZZ300



Transformer core cutting machine ZZ300 is a special cutter for cut silicon steel to make core limb of transformer core. This kind of transformer core cutting machine can be used to cut the iron core sheet with maximum width 300mm. With different parameters input through touch screen, the transformer core cutting machine can be used to cut different shapes of the core limb, for instance, the equilateral core limb, eccentric center core limb and so on. The transformer core cutting machine features easy operation and high production effective etc.



Quick details of transformer core cutting machine ZZ300

  • Cutting thickness 0.2 ~ 0.35mm
  • Cutting width 40 ~ 300mm
  • Feeding speed 180m/min
  • Power 14kw

Technical parameters of transformer core cutting machine ZZ300



Typical standard specifications of transformer core cutting machine ZZ300 are shown below, however, the cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Cutting Thickness: 0.2~‌0.35mm
Cutting Width: 40~300mm
Cutting Length: 150~2500mm
Feeding Speed: 0~180m/min
Total Power: 14Kw



CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 0

Fig 1: Transformer core cutting machine ZZ300's full view

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 1

Fig 2: Transformer core cutting machine ZZ300's cutter unit

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 2CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 3

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 4

CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 5



CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 6CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 7CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 8CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 9CRGO Silicon Steel Transformer Core Cutting Machine 14kw For Making Core Limb 10
