Transformer Core Cutting Machine Two Cutting Two Punching Silicon Steel Cut To Length
Description of transformer core cutting machine HJX600-LL
Automatic transformer core cutting machine HJX600-LL is a professional cutting to length, i.e. Línea de corte por longitud, to cut silicon steel to make transformer core. The transformer core cutting machine is with functions of cutting and punching two times to make a proper shape of the sheet. The transformer core cutting machine can be used to cut and punch iron core sheet to make fully inclined seam, half inclined seam and straight seam transformer iron core laminating sheet, which can be used in different specifications of transformer, such as small sized transformers, medium sized transformers and so on.
Quick details of transformer core cutting machine HJX600-LL
1. one-end decoiler (hydraulic expanding tight,electric inversion)
2. Slopping feed unit
3. Feeder (driven by servo motor, length-measuring device)
4. Punching unit
5.Shearing machine unit
6. Outlet platform
7. Depiler and sorting unit
8. Catching material unit
9. Whole line width adjusting system
10. Pneumatic system
Technical parameters of transformer core cutting machine HJX600-LL
Typical standard specifications of transformer core cutting machine HJX600-LL are shown below, however, the transformer core cutting machine can also be manufactured as requested.
| Roll Material Width Tolerance: | ≤±0.1mm |
| Roll Material Burr Length: | ≤0.03mm |
| Roll Material S Degree Tolerance: | single direction less than 0.1mm in 1000mm |
| Roll Material Wave Degree: | ≤15mm/1000mm( span more than 1000mm, height less than 15mm) |
| Sheet Thickness: | 0.23～ 0.35mm |
| Sheet Width: | 60～600mm |
| Sheet Length: | 350～9999mm |
| Punching Hole Dia. | Φ 10mm～24mm |
| Punching Hole Position: | can be bidirectional offset along the center line |
| V-notch Punching Eccentricity(along the center of the sheet): | ±30mm |
| Feeding speed: | 0～200m/min |
| Power: | 18Kw |

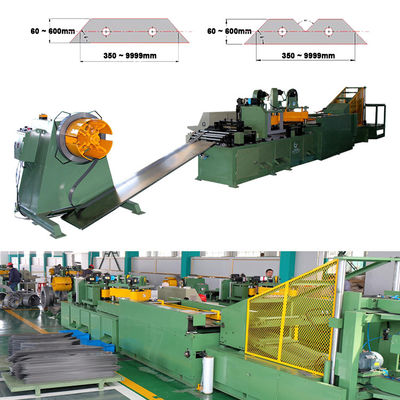

Fig 1: Transformer core cutting machine HJX600-LL's full view
Fig 2: Transformer core cutting machine HJJ600-LL's decoiler
