Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole

Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole

Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole
Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole

Large Image :  Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZZ300-BK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Core Limb Cutting Machine Usage: Making Core Limb
Sheet Thickness: 0.23 ~ 0.35mm Sheet Width: 40 ~ 300mm
Motor Power: 14kw Feed Speed: 180m/min
Machine Color: Customizable Warranty: 12 Months
High Light:

Silicon Core Limb Cutting Machine

,

Steel Transformer Core Cutting Machine

,

180m/min Transformer Core Machine

Silicon Steel Step Lap Cutter Transformer Core Cutting Machine Making Core Limb With Hole





Description of transformer core cutting machine ZZ300-BK



Transformer core cutting machine ZZ300-BK is a special cutter for cutting silicon steel to make transformer core limb. This kind of transformer core cutting machine can be used to cut the iron core sheet with maximum width 300mm and punch holes on the sheet. With different parameters input through touch screen, the transformer core cutting machine can be used to cut different shapes of the core limb, for instance, the equilateral core limb, eccentric center core limb and so on. With PLC control system, it is very easy to operate the transformer core cutting machine.





Quick details of transformer core cutting machine ZZ300-BK



  • Cutting sheet thickness 0.2 ~ 0.35mm
  • Cutting sheet width 40 ~ 300mm
  • Feeding speed 180m/min
  • Power 14kw



Technical parameters of transformer core cutting machine ZZ300-BK



Typical standard specifications of transformer core cutting machine ZZ300-BK are shown below, however, the transformer core cutting machine can also be manufactured as requested.

Roll Material Width Tolerance: ≤±0.1mm
Roll Material Burr Length: ≤0.02mm
Cutting Thickness: 0.2~‌0.35mm
Cutting Width: 40~300mm
Cutting Length: 150~2500mm
Feeding Speed: 0~180m/min
Total Power: 14Kw

Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 0

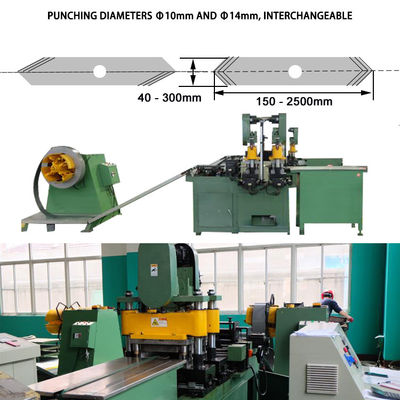

Fig 1: Transformer core cutting machine ZZ300-BK's full view



Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 1

Fig 2: Transformer core cutting machine ZZ300-BK's cutter



Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 2Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 3Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 4Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 5

Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 6Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 7Silicon Steel Transformer Core Cutting Machine Making Core Limb With Hole 8
