PLC Control Automatic Core Cutting Machine Making Reactor Core

PLC Control Automatic Core Cutting Machine Making Reactor Core

PLC Control Automatic Core Cutting Machine Making Reactor Core
PLC Control Automatic Core Cutting Machine Making Reactor Core

Large Image :  PLC Control Automatic Core Cutting Machine Making Reactor Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: DHJ300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Core Cutting Machines Function: Making Reactor Cores
Cutting Width: 30 ~ 300mm Sheet Thickness: 0.23 ~ 0.35mm
Cutting Speed: 180m/min Power: 8kw
Color: Optional Warranty: 12 Months
High Light:

PLC Control Reactor Core Cutting Machine

,

Reactor Core Cut To Length Line

,

Automatic Reactor Core Cutting Machine

PLC Control Making Reactor Core Cut To Length Line Automatic Core Cutting Machine





Description of automatic core cutting machine DHJ300



Automatic core cutting machine DHJ300 is mainly for cutting silicon steel sheet to make reactor cores. The core cutting machine can punch holes on the core if needing. The automatic core cutting machine is provided with servo motor to drive cutting and punching action, which guarantees the accuracy of the actions. The automatic core cutting machine features easy operation, high automation and so on.





Quick details of automatic core cutting machine DHJ300

  • Sheet thickness 0.23 ~ 0.35mm
  • Sheet width 40 ~ 300mm
  • Cutting length 10 ~ 9999mm
  • Feeding speed 180m/min
  • Motor power 8kw
  • 12 months warranty



Main parameters of automatic core cutting machine DHJ300



Typical standard specifications of automatic core cutting machine DHJ300 are shown below, however, the core cutting machine can also be manufactured as requested.

1 Working Platform Height: 850mm
2 Decoiler Expanding Mode: Hydraulic
3 Decoiler Expansion Range: 470 ~ 508mm
4 Sheet Thickness: 0.23 ~ 0.35mm
5 Sheet Width: 30 ~ 300mm
6 Cutting Length: 10 ~ 9999mm
7 Feeding Speed: 180m/min
8 Feeding Tolerance: ±0.05mm/m
9 Cutting Burring: Less than 0.02mm
10 Motor Power: 8kw



PLC Control Automatic Core Cutting Machine Making Reactor Core 0

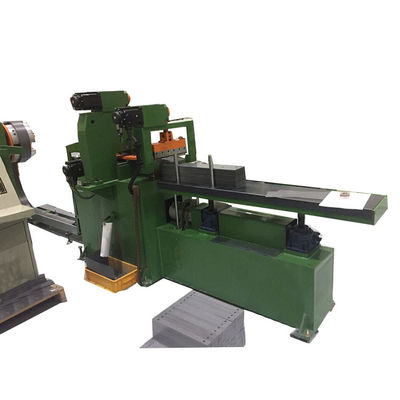

Fig 1: Automatic core cutting machine DHJ300's full view



PLC Control Automatic Core Cutting Machine Making Reactor Core 1

Fig 2: Automatic core cutting machine DHJ300's punching unit



PLC Control Automatic Core Cutting Machine Making Reactor Core 2PLC Control Automatic Core Cutting Machine Making Reactor Core 3

PLC Control Automatic Core Cutting Machine Making Reactor Core 4PLC Control Automatic Core Cutting Machine Making Reactor Core 5

PLC Control Automatic Core Cutting Machine Making Reactor Core 6PLC Control Automatic Core Cutting Machine Making Reactor Core 7PLC Control Automatic Core Cutting Machine Making Reactor Core 8
