Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg

Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg

Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg
Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg

Large Image :  Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: DHJ400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Automatic Core Cutting Machine Function: Cutting Silicon Sheet
Sheet Width: 40 ~ 400mm Sheet Thickness: 0.23 ~ 0.5mm
Feeding Speed: 0 ~ 180m/min Power: 12.5kw
Color: As Requested Warranty Period: 12 Months
High Light:

Reactor Core Leg Cutting Machine

,

Silicon Sheet Core Cutting Machine

,

Core Cutting Machine 180 M/Min

Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg


Description of automatic core cutting machine DHJ400

Automatic core cutting machine DHJ400 is a special cutting machine to cut silicon steel strip, which can be used to make reactor core legs. This type of automatic core cutting machine can be used to cut the silicon steel with maximum width 400mm. If needing, the automatic core cutting machine can punch holes on the strip. The automatic core cutting machine is provided with servo motor, which is used to drive cutting and punching actions and guarantees the accuracy of the actions. The cutter blade of the automatic core cutting machine adopts carbide cutter knife with HRC88 ~ 90 hardness. The cutter can cut the silicon steel 5 million times without regrinding the blade. The automatic core cutting machine features high automation, easy operation and so on.


Quick details of automatic core cutting machine DHJ400


  • Cutting sheet thickness 0.23 ~ 0.35mm
  • Cutting sheet width 40 ~ 400mm
  • Cutting sheet length 10 ~ 9999mm
  • Feeding sheet speed 180m/min
  • Power 12.5kw
  • One year warranty


Main components of automatic core cutting machine DHJ400

1. Decoiler for placing steel material
2. Frame
3. Feeding sheet unit
4. Hole punching device
5. Shearing unit
6. Stacking table
7. Control system


Main parameters of automatic core cutting machine DHJ400



Typical standard specifications of automatic core cutting machine DHJ400 are shown below, however, the core cutting machine can also be manufactured as requested.

1Working Platform Height:900mm
2Decoiler:Hydraulic expanding
3Decoiler Diameter Range:Φ470 ~ Φ508mm
4Cutting Sheet Thickness:0.23 ~ 0.35mm
5Cutting Sheet Width:40 ~ 400mm
6Cutting Sheet Length:10 ~ 9999mm
7Feeding Sheet Speed:180m/min
8Feeding Tolerance:±0.05mm/m
9Height of Burr After Cutting:Less than 0.02mm
10AC Power:12.5kw


Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 0

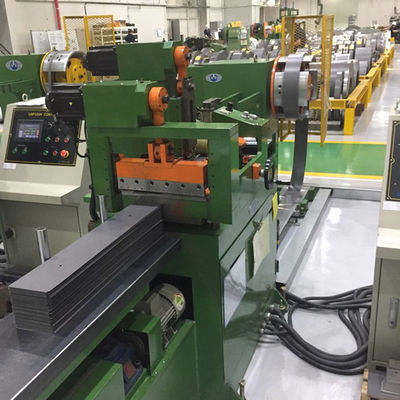

Fig 1: Automatic core cutting machine DHJ400's full view

Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 1
Fig 2: Automatic core cutting machine DHJ400's punching unit

Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 2Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 3Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 4Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 5Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 6Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 7Core Cut To Length Automatic Core Cutting Machine Making Reactor Core Leg 8
