Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless

Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless

Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless
Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless

Large Image :  Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: MW500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Motor Coil Winding Machine Machine Color: As Requested
Winding Speed: 0 ~ 200rpm Flange Diameter: 500mm
Speed Regulation: Stepless Conduct Type: Copper Or Aluminium Wire
Warranty Period: 12 Months Machine Weight: 300kg
High Light:

stepless electric motor coil winding machine

,

copper electric motor coil winding machine

,

200rpm copper wire winding machine

Electric Motor Coil Winding Machine Copper Wire Winding Winder Machine





Description of motor coil winding machine MW500



Motor coil winding machine MW500 is one kind of wire winder, which is mainly used to wind motor coils and other similar products. The motor coil winding machine is with one flange with outer diameter 500mm. The motor coil winding machine is provided with one counter to show the number of turns when winding. Moreover, The number of turns can be saved even if the power cut off suddenly. The foot pedal can be used to switch the rotating direction. The motor coil winding machine features easy operation.





Main features of motor coil winding machine MW500

  • Slow starting, at the beginning of winding, the winding speed is very slow for safety
  • Smooth running, during running, the motor coil winding machine is very stable
  • Easy to operate, operating the motor coil winding machine is very easy and simple
  • Counting the number of turns



Quick details of motor coil winding machine MW500



  • Winding copper or aluminium wire
  • Winding speed 200rpm
  • Flange diameter 500mm
  • Motor power 3kw
  • One year warranty



Main Parameters



Typical standard specifications of motor coil winding machine MW500 are shown below, however, the motor coil winding machine can also be manufactured as requested.

Machine Height: 1400mm
Flange Diameter: 500mm
Rotating Speed: 0 ~ 200rpm
Counting Range: 0 ~ 9999.9
Max. Loading Capacity: 200KG
Main motor Power: 3KW
Colour: customized
Machine Dimension(LxWxH): 900x700x1400mm



Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 0

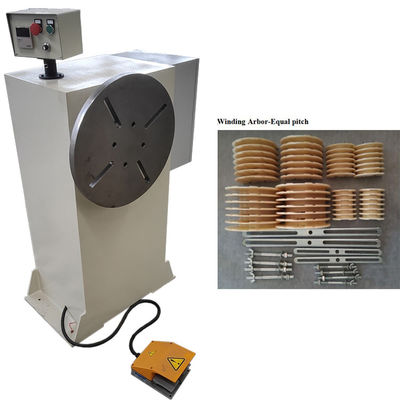

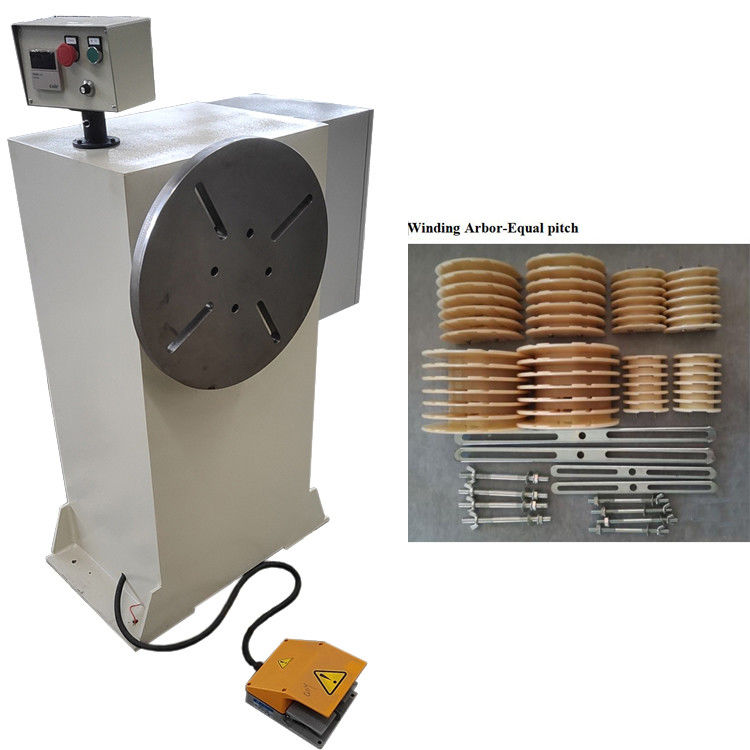

Fig 1: Motor coil winding machine MW500's full view



Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 1

Fig 2: Motor coil winding machine MW500's control board



Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 2Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 3Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 4Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 5Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 6Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 7Copper Wire 200rpm Electric Motor Coil Winding Machine Stepless 8
